12V Battery Negative Cable Disconnection/Connection
Mobile Repair Possible: Van/Car
NOTE:
Damage
Failure to follow specified procedures may result in damage to the vehicle's electrical system.
Failure to follow specified procedures may result in damage to the vehicle's electrical system.
- Read Warnings and Instructions before disconnecting the battery.
- Refer to DANGER AND WARNINGS
Removal Procedure:

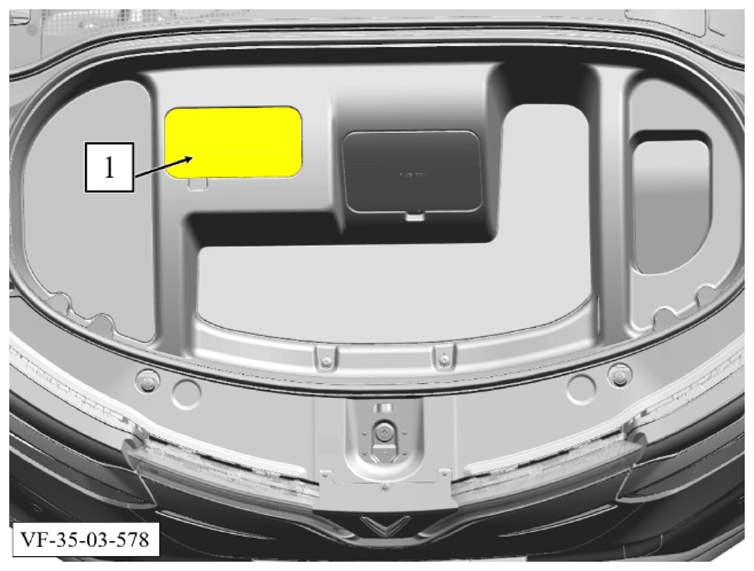

- Remove maintenance cap (1).

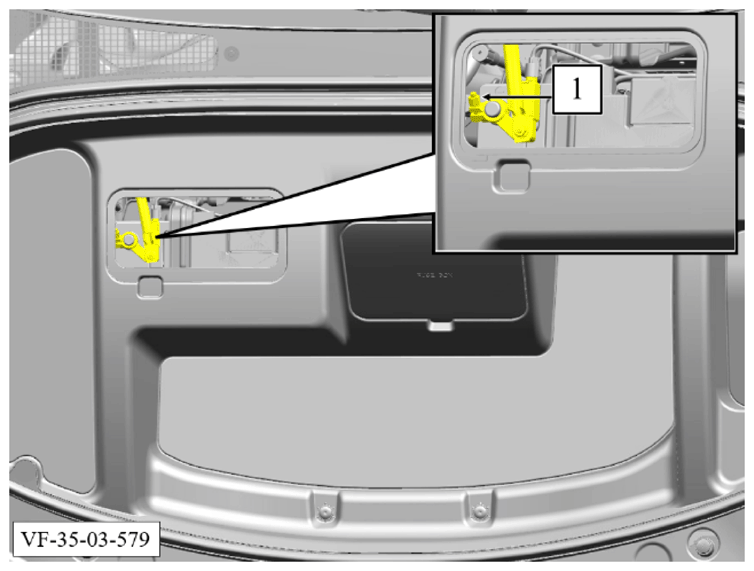

- Loosen nut (1), do not remove it.
Torque: 6 Nm

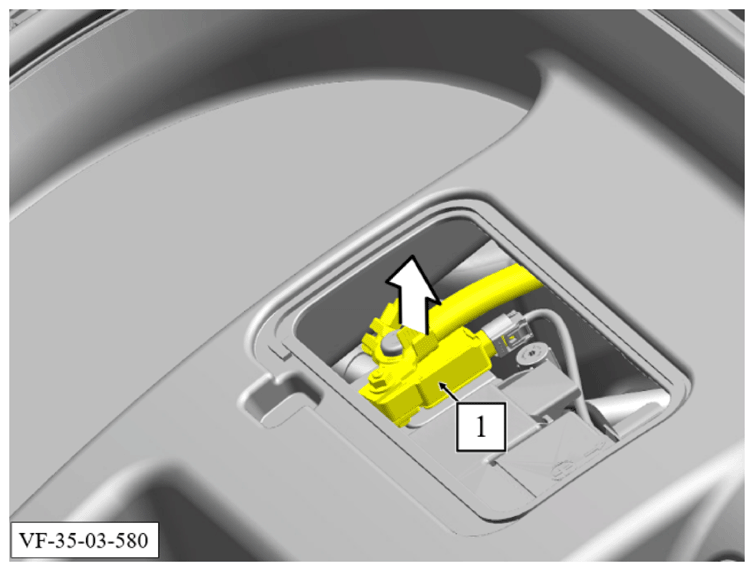

- Pull off the battery negative cable (1) from the battery negative terminal by carefully moving it to and fro. Do not pry using a tool.
- Move the battery negative cable (1) to one side and secure.
Installation Procedure:
- Installation is the reverse of removal procedure, noting the following. All fasteners must be tightened to torque specification!
- For New Battery Installation , set Threshold of BAS Sensor Value Lowered to 75% by IDS (Diagnostic Tool). Go to BCM - Service - BAS calibration.
- Perform BAS Sensor LEARNING (possible only when ambient temperature is in range: 10 - 35 degree Celsius) by Turn ON HV in 30 min.
