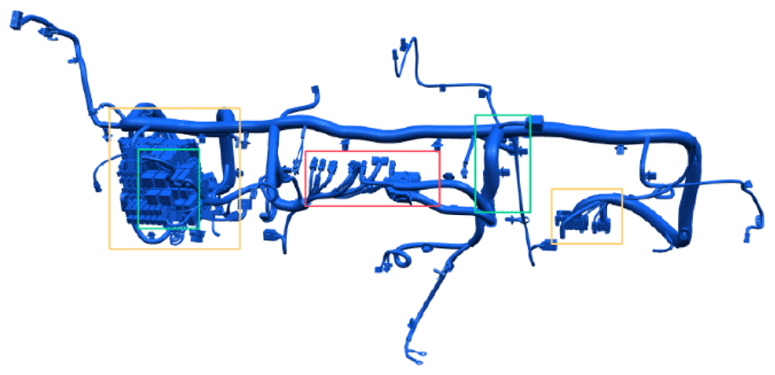

Location of IP Harness Connectors and Modules: Components

  1. Multi Media Display
  2. Antenna
  3. Multi Media Head Unit
  4. USB Front Socket
  5. Electric Parking Brake
  6. IP Fuse Box
  7. Clock Spring
  8. Multi Function Stalks
    G15971504Courtesy of VINFAST, LLC
