Front Side Door Window Weatherstrip Removal And Installation/Replacement

Mobile Repair Possible:  Van/Car

Removal Procedure:

The procedure for the left-hand component is identical to that for the right-hand side.

Courtesy of VINFAST, LLC

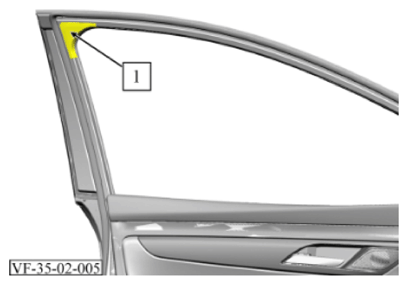

1. Front side door window weatherstrip (1).

   Courtesy of VINFAST, LLC

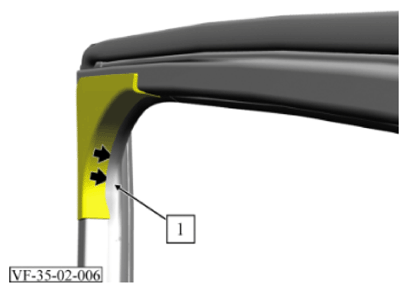

2. Push the window guide (1) slightly in the direction of the arrows.

   Courtesy of VINFAST, LLC

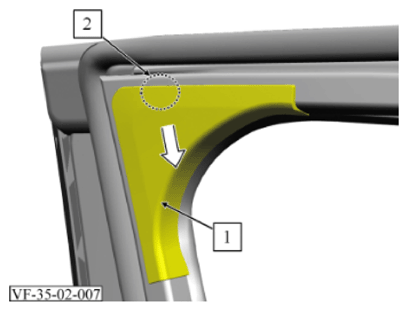

3. Remove the front side door window weatherstrip (1) by moving it in the direction of the arrow and unclipping it from the window frame in location (2).

Installation Procedure:

Courtesy of VINFAST, LLC

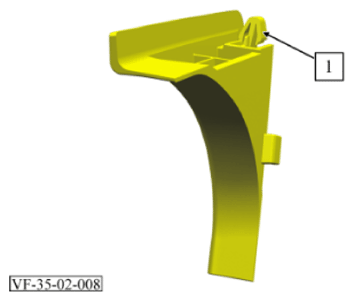

Installation note: Check fixings (1) for damage and remove the weatherstrip if needed.

1. Installation is the reverse of removal procedure.
