Front Side Door Window Switch Removal And Installation/Replacement

Mobile Repair Possible:  Van/Car

Removal Procedure:

The procedure for the left-hand component is identical to that for the right-hand side.

1. Remove front side door trim. Refer to FRONT SIDE DOOR TRIM REMOVAL AND INSTALLATION/REPLACEMENT

   Courtesy of VINFAST, LLC

   Driver door:

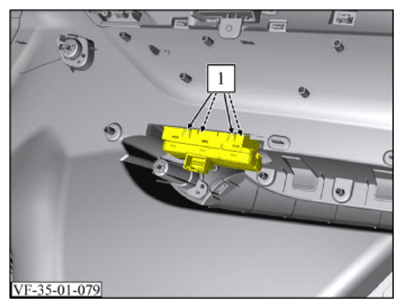

2. Press the 4 retaining clips (1) and remove the cover with the front side door window switch from the door trim

   Courtesy of VINFAST, LLC

   Passenger door:

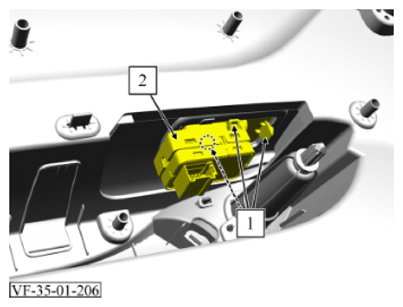

3. Press the 3 retaining clips (1) and remove the cover (2) with the front side door window switch from the door trim

   Courtesy of VINFAST, LLC

   Driver door:

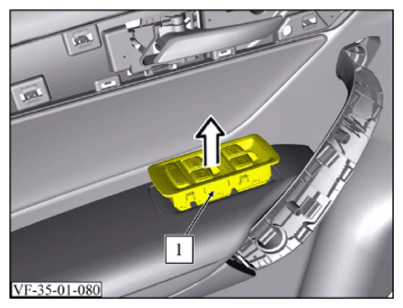

4. Remove cover (1) with the front side door window switch

   Courtesy of VINFAST, LLC

   Passenger door:

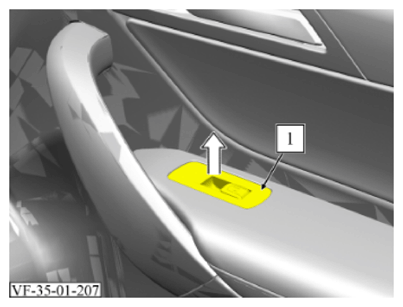

5. Remove cover (1) with the front side door window switch

Replacement Procedure:

Courtesy of VINFAST, LLC

Driver door:

1. Release 6 clips all around.
2. Refit the cover (1).

   Courtesy of VINFAST, LLC

   Passenger door:

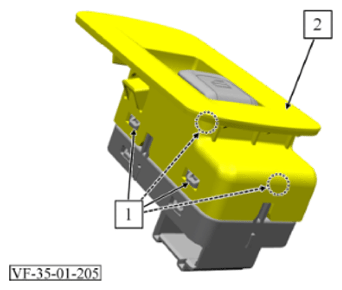

3. Release 4 clips (1).
4. Rebuild the cover (2).

Installation Procedure:

1. Installation is the reverse of removal procedure, noting the following.
2. Install front side door trim. Refer to FRONT SIDE DOOR TRIM REMOVAL AND INSTALLATION/REPLACEMENT
