INS Antenna Removal And Installation/Replacement

Mobile Repair Possible:  Van/Car

Overview:

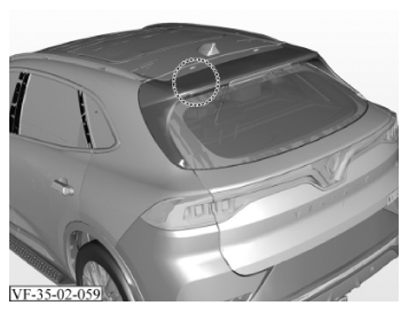

Fig 1: INS Antenna Components Location

Courtesy of VINFAST, LLC

Removal Procedure:

1. Disconnect the 12V battery negative terminal. Refer to 12V BATTERY NEGATIVE CABLE DISCONNECTION/CONNECTION
2. Remove rear side upper trim panel. Refer to REAR SIDE UPPER TRIM PANEL REMOVAL AND INSTALLATION/REPLACEMENT

   Courtesy of VINFAST, LLC

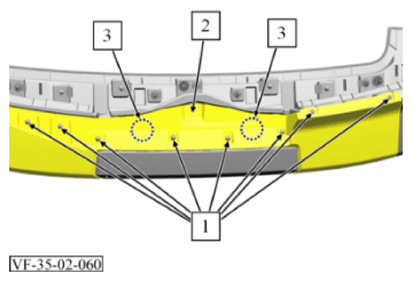

3. Remove 8 screws (1).

   Torque: 2.6 Nm

4. Remove the spoiler inner trim cover (2) by releasing two clips (3).

   Courtesy of VINFAST, LLC

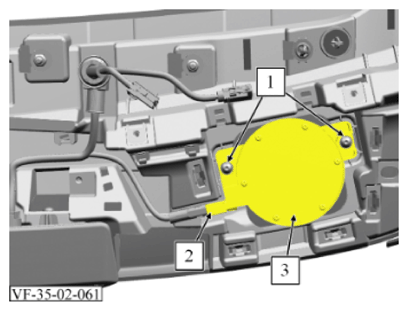

5. Remove 2 screws (1).

   Torque: 2.6 Nm

6. Unlock and disconnect electrical connector (2).
7. Remove the INS-antenna (3).

Installation Procedure:

1. Installation is the reverse of removal procedure, noting the following.

   All fasteners must be tightened to torque specification!

2. Install rear side upper trim panel. Refer to REAR SIDE UPPER TRIM PANEL REMOVAL AND INSTALLATION/REPLACEMENT
3. Reconnect the 12V battery negative terminal. Refer to 12V BATTERY NEGATIVE CABLE DISCONNECTION/CONNECTION
4. Diagnostics, Programming and Setup. Refer to DIAGNOSTICS, PROGRAMMING AND SETUP USING SCAN TOOL IN SERVICE
