Frunk LF Antenna Removal And Installation/Replacement

Mobile Repair Possible:  Van/Car

Removal Procedure:

1. Remove front trunk. Refer to FRONT TRUNK REMOVAL AND INSTALLATION/REPLACEMENT

   Courtesy of VINFAST, LLC

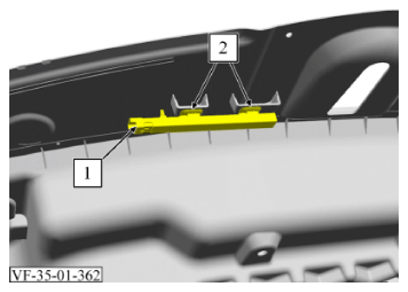

2. Unlock and disconnect the electrical connector (1).
3. Clip out the frunk LF antenna from the front trunk (2).
4. Remove the frunk LF antenna.

Installation Procedure:

1. Installation is the reverse of removal procedure, noting the following.
2. Install front trunk. Refer to FRONT TRUNK REMOVAL AND INSTALLATION/REPLACEMENT
3. Diagnostics, Programming and Setup. Refer to DIAGNOSTICS, PROGRAMMING AND SETUP USING SCAN TOOL IN SERVICE
