Multimedia Display Removal And Installation/Replacement

Mobile Repair Possible:  Van/Car

Removal Procedure:

1. Remove instrument panel HMI trim cover. Refer to INSTRUMENT PANEL HMI TRIM COVER REMOVAL AND INSTALLATION/REPLACEMENT

   Courtesy of VINFAST, LLC

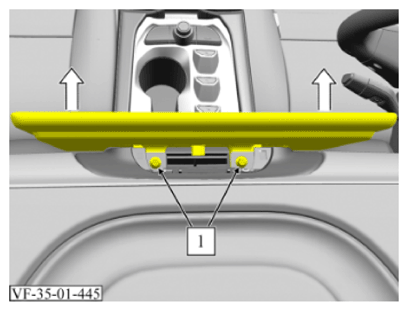

2. Remove 2 bolts (1).

   Torque: 8 Nm

3. Guide multimedia display away from the control panel in arrow direction.

   Courtesy of VINFAST, LLC

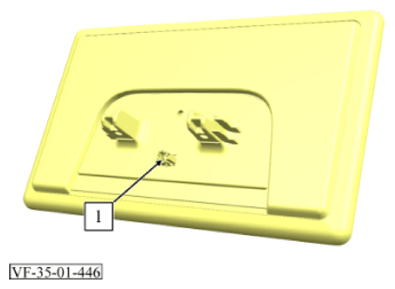

4. Unlock and disconnect electrical connector (1).

Installation Procedure:

1. Installation is the reverse of removal procedure, noting the following. All fasteners must be tightened to torque specification!
2. Install instrument panel HMI trim cover. Refer to INSTRUMENT PANEL HMI TRIM COVER REMOVAL AND INSTALLATION/REPLACEMENT
