Rear Surround View Monitoring Camera Removal And Installation/Replacement

Mobile Repair Possible:  Van/Car

Removal Procedure:

1. Remove Liftgate Lower Applique. Refer to LIFTGATE LOWER APPLIQUE REMOVAL AND INSTALLATION/REPLACEMENT

   Courtesy of VINFAST, LLC

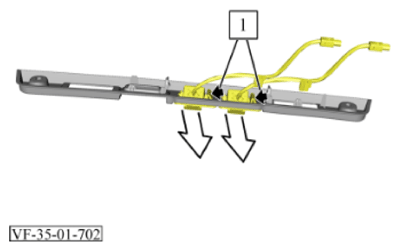

2. Unclip the rear-view cameras, to release the clips push them in the direction shown by the arrows (1). Move the cameras downward to remove them.

Installation Procedure:

1. Installation is the reverse of removal procedure, noting the following
2. Install Liftgate Lower Applique. Refer to LIFTGATE LOWER APPLIQUE REMOVAL AND INSTALLATION/REPLACEMENT
3. Diagnostics, Programming and Setup. Refer to DIAGNOSTICS, PROGRAMMING AND SETUP USING SCAN TOOL IN SERVICE
