Front Sub Frame Level Sensor Rod Removal And Installation/Replacement

Mobile Repair Possible:  Van only

Removal Procedure:

1. Remove the front left wheel. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION

   Courtesy of VINFAST, LLC

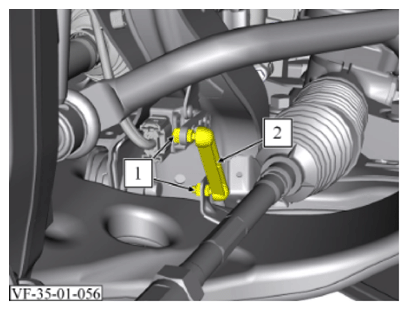

2. Remove 2 nuts (1).

   Torque: 8 Nm

3. Remove sub frame level sensor rod (2).

Installation Procedure:

1. Installation is the reverse of removal procedure, noting the following.

   All fasteners must be tightened to torque specification!

2. Install the front wheel. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION
