Windshield Rain and Light Sensor Removal And Installation/Replacement

Mobile Repair Possible:  Van/Car

Removal Procedure:

1. Remove inside rearview mirror wiring harness cover. Refer to INSIDE REARVIEW MIRROR WIRING HARNESS COVER REMOVAL AND INSTALLATION/REPLACEMENT

   Courtesy of VINFAST, LLC

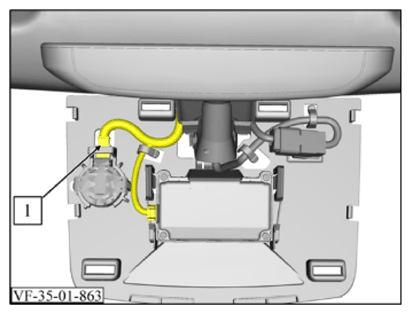

2. Unlock and disconnect electrical connector (1).

   Courtesy of VINFAST, LLC

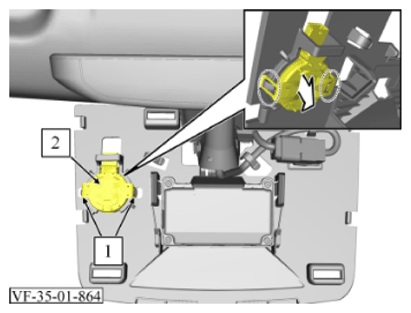

3. Slightly bend open fixings (1) and remove windshield rain and light sensor (2)

Installation Procedure:

1. Installation is the reverse of removal procedure, noting the following.
2. Install inside rearview mirror wiring harness cover. Refer to INSIDE REARVIEW MIRROR WIRING HARNESS COVER REMOVAL AND INSTALLATION/REPLACEMENT
3. Diagnostics, Programming and Setup. Refer to DIAGNOSTICS, PROGRAMMING AND SETUP USING SCAN TOOL IN SERVICE
