Park Assist System Description And Function (Including Surround Vision Monitoring And Remote Parking)
Park Assist System Components:

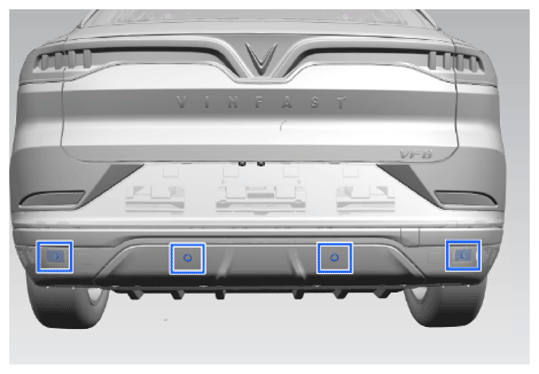

- 4 sensors for the rear park assist (RPA)

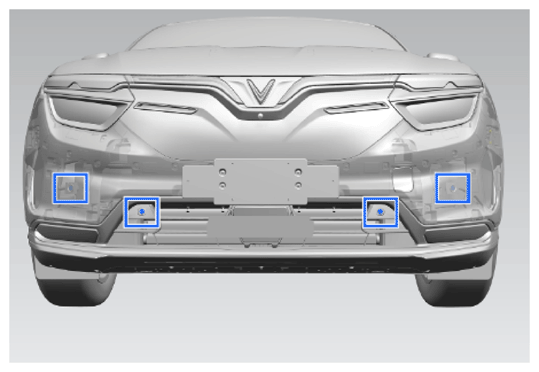

- 4 sensors for the front park assist (FPA)

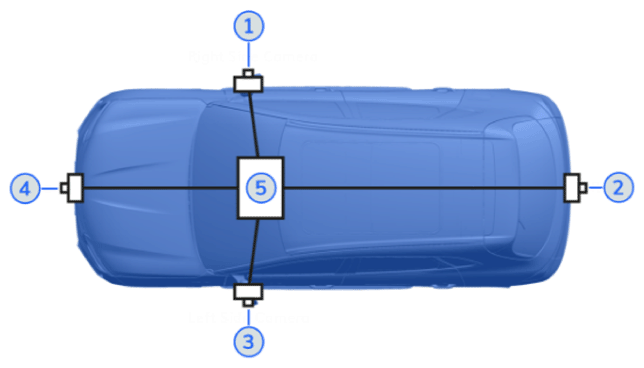

Surround Vision Monitoring Components:
- Right-hand side camera
- Rear camera
- Left-hand side camera
- Front camera
- MHU
Technical Description:
Rear parking sensors are engaged automatically when the reverse gear is selected. The front sensors can be engaged or disengaged with a button on the console.
Visual warning: Atop view of the vehicle appears as soon as the park distance control (PDC) is activated. The distance range of the sensors is represented by the colours red, orange, yellow and green.
A warning tone is made when nearby obstacles are detected.
Remote parking (RP) is a driver assistance system that allows the user to park and exit a parking space automatically. The user has two different options: 1. Park and 2. Exit.
When the driver is driving the vehicle, the vehicle scans the sides of the road as the vehicle drives past and informs the driver when there is a parallel, perpendicular, or angled parking spot, or when an available predefined/stored parking location is detected within a couple of meters.
The user can request the vehicle to exit its parking spot, without any further driving, by selecting this option on the remote device. This feature can also be used if the vehicle is parked inside a building (and a cellular connection is not available).
360 Surround View Monitoring (SVM) is a driver assistance system that provides entire surroundings of the vehicle by creating a distortion-free stitched image for a safe and comfortable parking experience. The operating speed range of the system is 0~30 km/h, and R gear has no speed limit.
Operation: (Use Cases)

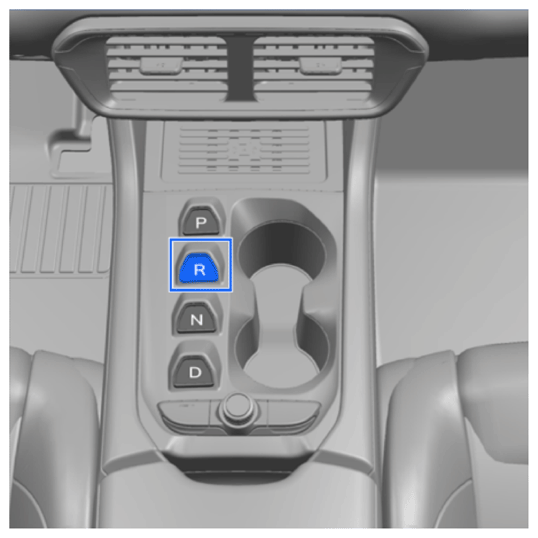

- Select Reverse gear.
- The rear sensors are automatically switched on.
The front sensors can be engaged or disengaged with a button on the console.

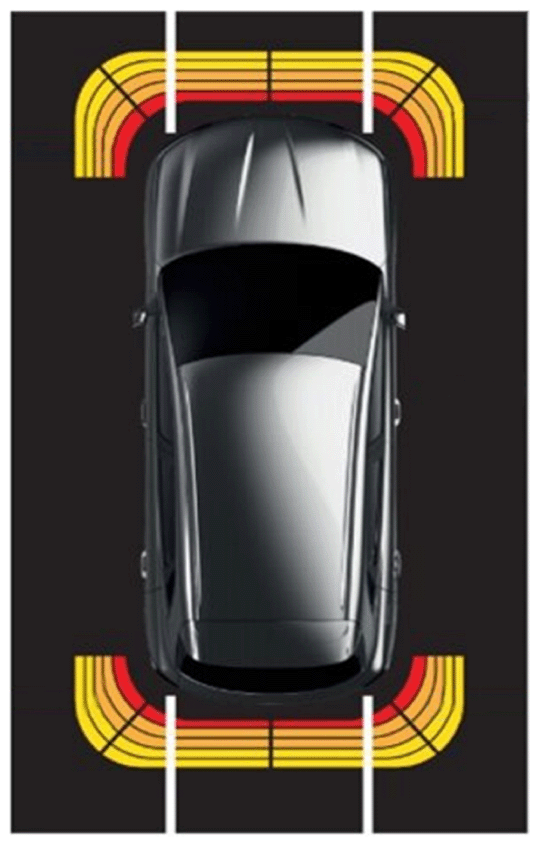

Each zone is split into 3 levels of severity, represented by different colours.

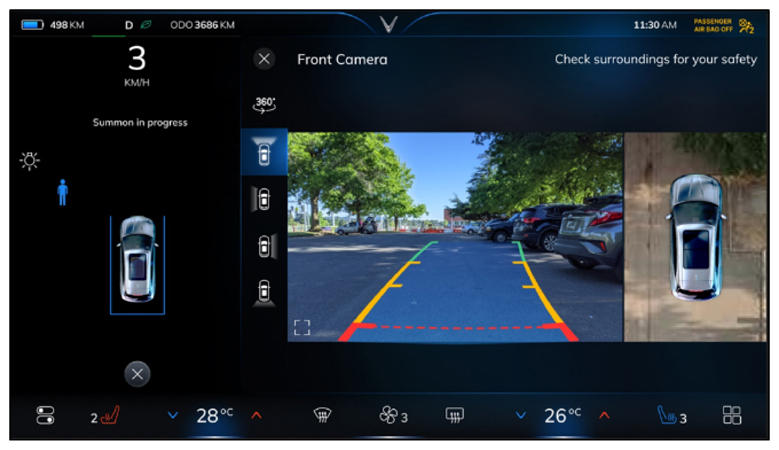

The dynamic vehicle lines are generated with reference to the steering wheel angle.

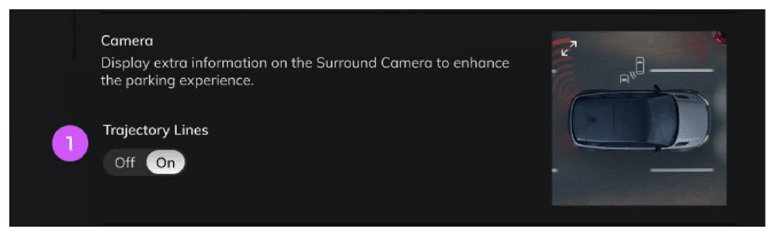

Switching the surround camera on and off

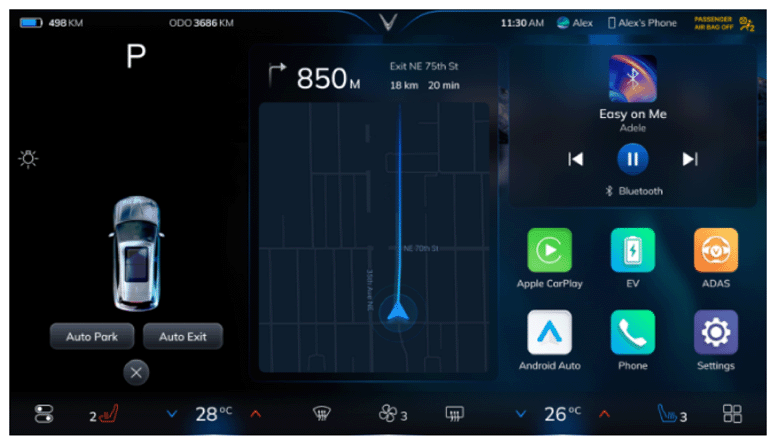

Selecting remote parking mode:
- Auto park
- Auto exit
