Steering Column Assembly: Removal

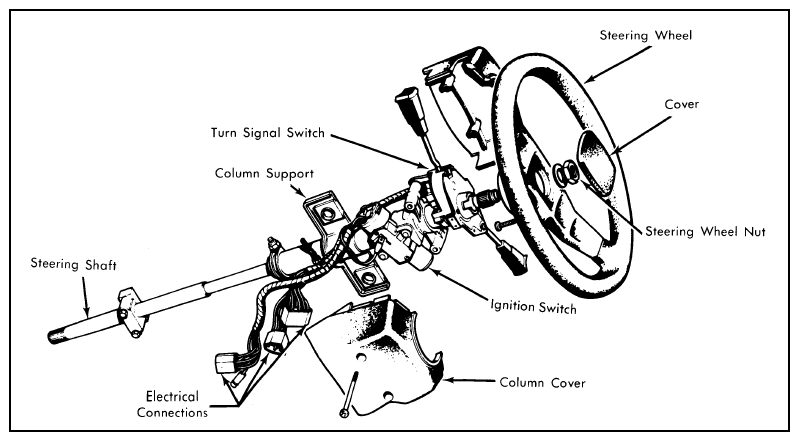

- Disconnect battery ground. Take out pinch bolt securing upper universal to steering mast. Disconnect electrical harness from steering column and separate plug connectors ( Figure ). Remove plastic cover from around steering column.
- Center punch shear head bolts and use a small chisel to remove. With wheels facing in a straight ahead position, withdraw steering column, noting number and position of flat and concave washers.
