Triumph Vacuum Diagrams

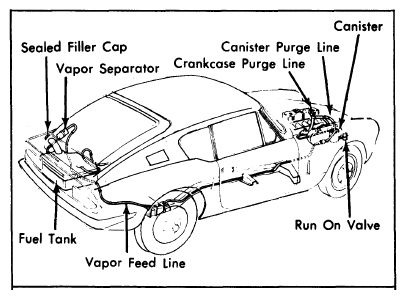

Fig 1: 1974 GT6 Fuel Evaporation System
G09350865Courtesy of NOT AVAILABLE

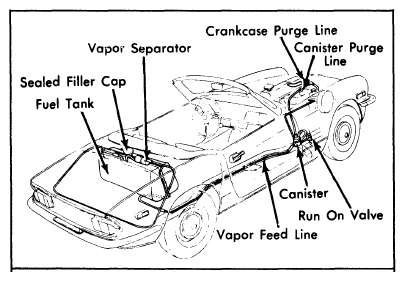

Fig 2: 1974 Spitfire MK IV Fuel Evaporation System
G09350866Courtesy of NOT AVAILABLE

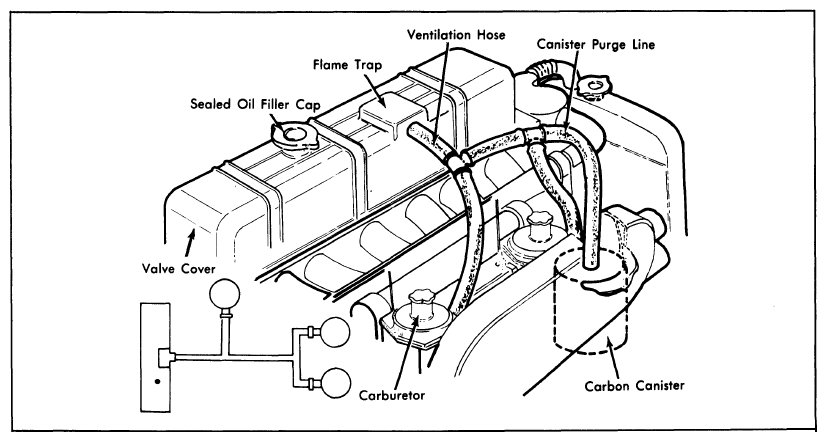

Fig 3: 1974-78 Positive Crankcase Ventilation System (Typical)
G09350867Courtesy of NOT AVAILABLE

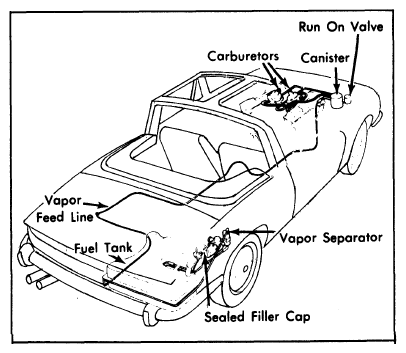

Fig 4: 1974 Stag Fuel Evaporation System
G09350868Courtesy of NOT AVAILABLE

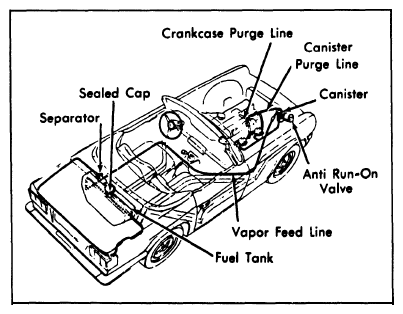

Fig 5: 1974 TR6 Fuel Evaporation System
G09350869Courtesy of NOT AVAILABLE

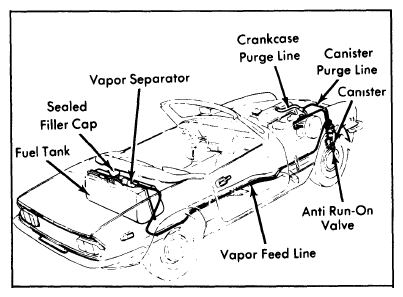

Fig 6: 1975-78 Spitfire MK IV Fuel Evaporation System
G09350870Courtesy of NOT AVAILABLE

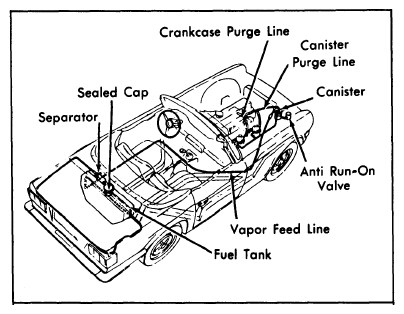

Fig 7: 1975-78 TR6 Fuel Evaporation System
G09350871Courtesy of NOT AVAILABLE

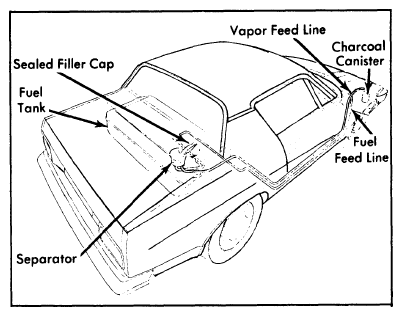

Fig 8: 1975-78 TR7 Fuel Evaporation System
G09350872Courtesy of NOT AVAILABLE

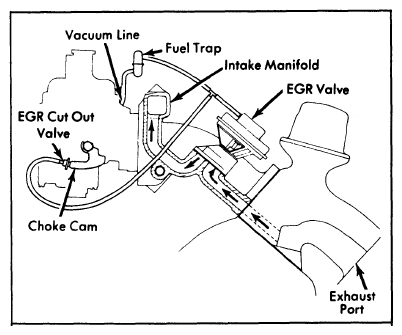

Fig 9: 1977 TR7 Exhaust Gas Recirculation System
G09350873Courtesy of NOT AVAILABLE
