Wiring Diagrams

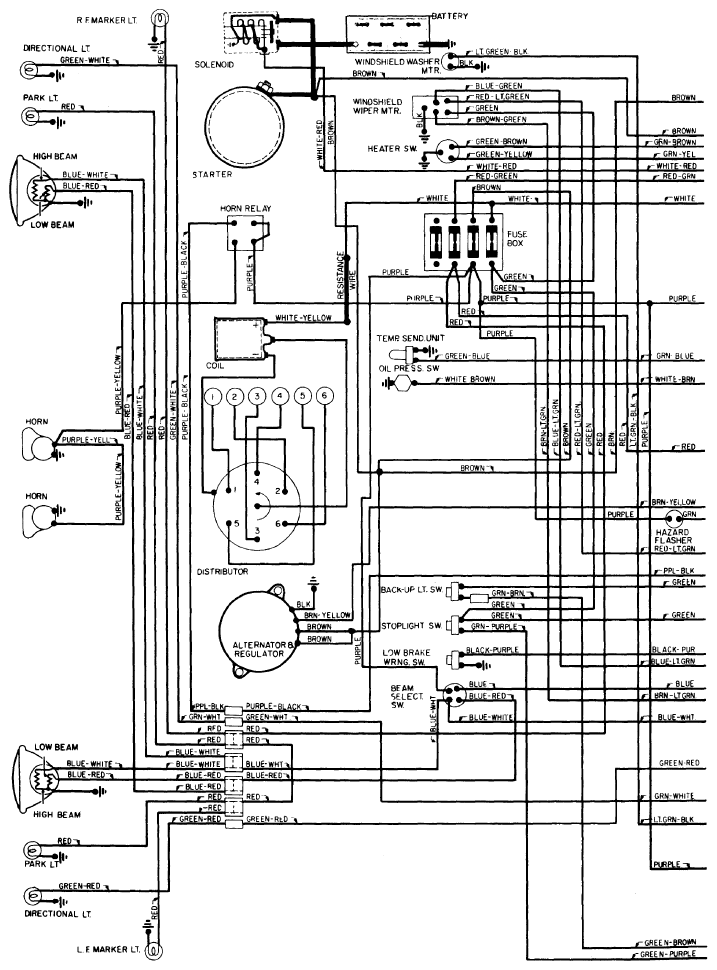

Fig 1: Wiring diagrams - TR6 (1 of 2)

G09302886

Courtesy of NOT AVAILABLE

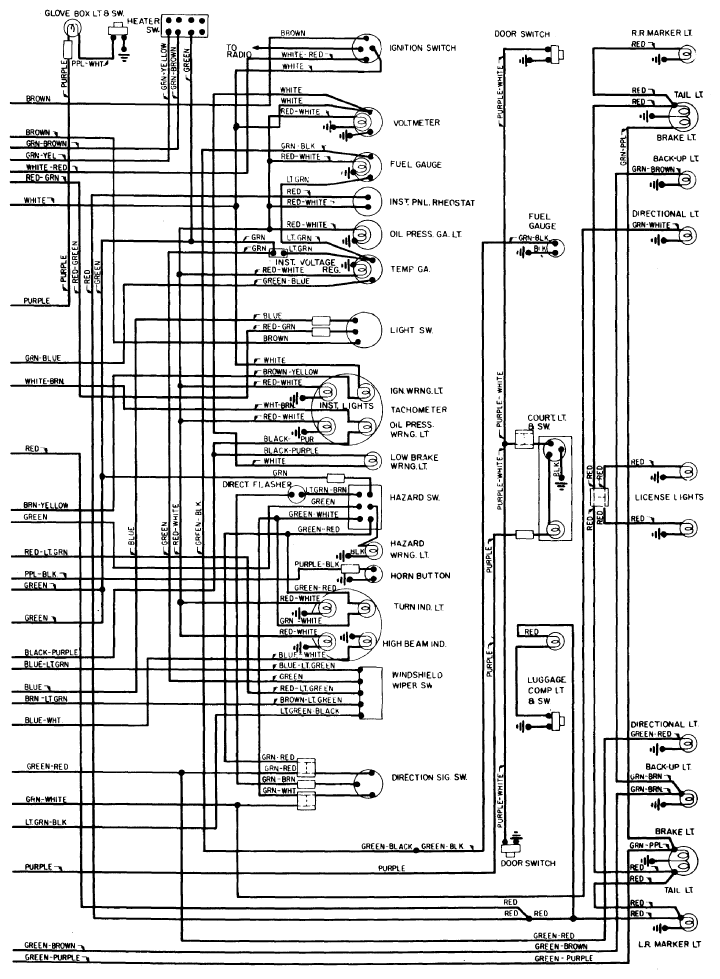

Fig 2: Wiring diagrams - TR6 (2 of 2)

G09302887

Courtesy of NOT AVAILABLE
