Removal [03/2024 - ]: Procedure

Refer to REMOVAL [03/2024 - 12/2024] , or refer to REMOVAL [12/2024 - ]

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

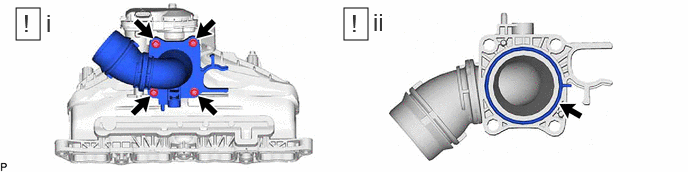

   1. Using an 8 mm socket wrench, remove the 4 bolts and No. 2 air tube from the throttle body with motor assembly and intake manifold.
   2. Remove the throttle body gasket from the No. 2 air tube.

NOTE: If the throttle body with motor assembly has been struck or dropped, replace it.

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
