Installation [12/2023 - ]: Procedure

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Protrusion

   -

   -

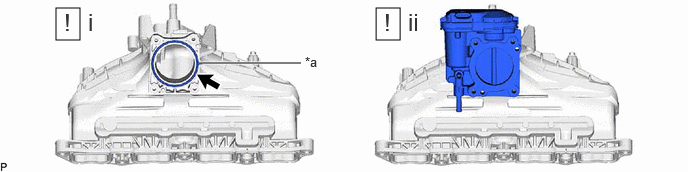

   1. Install a new throttle body gasket to the intake manifold with the protrusion of the throttle body gasket oriented as shown in the illustration.
   2. Install the throttle body with motor assembly to the intake manifold.
      NOTE:

      If the throttle body with motor assembly has been struck or dropped, replace it.

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Protrusion

   -

   -

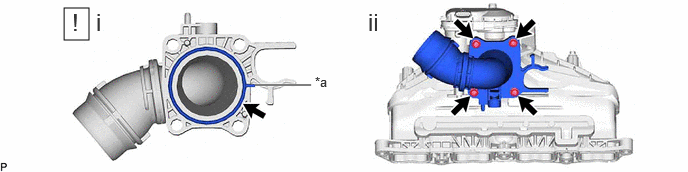

   1. Install a new throttle body gasket to the No. 2 air tube with the protrusion of the throttle body gasket oriented as shown in the illustration.
   2. Using an 8 mm socket wrench, install the No. 2 air tube to the throttle body with motor assembly and intake manifold with the 4 bolts.

      Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

Refer to INSTALLATION [12/2023 - 03/2024] , or refer to INSTALLATION [03/2024 - 12/2024] , or refer to INSTALLATION [12/2024 - ]

Refer to ON-VEHICLE INSPECTION [12/2023 - 03/2024] , or refer to ON-VEHICLE INSPECTION [03/2024 - ]
