Removal [12/2023 - 03/2024]: Procedure

  1. REMOVE INTAKE MANIFOLD WITH THROTTLE BODY ASSEMBLY

    Refer to REMOVAL [12/2023 - 03/2024]

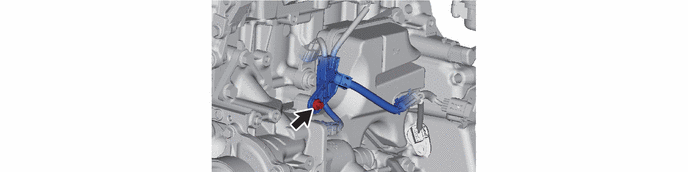

  2. DISCONNECT WIRE HARNESS
    1. GTY1184729Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

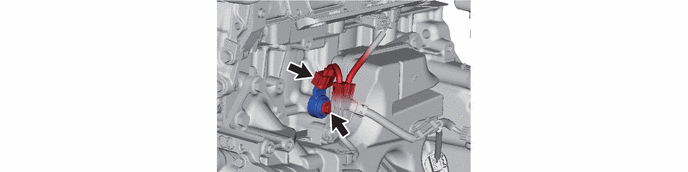

  3. REMOVE KNOCK CONTROL SENSOR
    NOTE:

    If the knock control sensor has been struck or dropped, replace it.
    1. GTY1183309Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
