Installation [03/2024 - ]: Procedure

INSTALL SPARK PLUG

Refer to INSTALLATION [12/2023 - ]

INSTALL IGNITION COIL ASSEMBLY

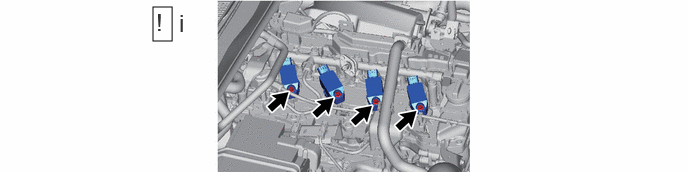

GTY1193816

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Using an 8 mm socket wrench, install the 4 ignition coil assemblies to the cylinder head cover sub-assembly with the 4 bolts.
Torque: 7.5 N*m (76 kgf*cm, 66 in.*lbf)

NOTE:
If an ignition coil assembly has been struck or dropped, replace it.

CONNECT ENGINE WIRE
PERFORM INITIALIZATION
1. Perform "Inspection After Repair" after replacing an ignition coil assembly or spark plug.
  - for Gasoline Model:
    Refer to INITIALIZATION [12/2023 - ]
  - for 1Motor-HEV Model:
    Refer to INITIALIZATION [03/2024 - ]
