Removal [03/2024 - ]: Procedure

Refer to REMOVAL [12/2023 - ]

• for 1Motor-HEV Model:

  Refer to PROCEDURE - Step 17 [03/2024 - 12/2024] , or refer to PROCEDURE - Step 17 [12/2024 - ]

• for Gasoline Model:

  Refer to PROCEDURE - Step 11

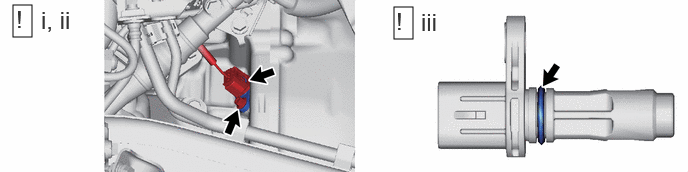

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   1. Disconnect the crank position sensor connector.
   2. Using an 8 mm socket wrench, remove the bolt and crank position sensor from the cylinder block sub-assembly.
      NOTE:

      If the crank position sensor has been struck or dropped, replace it.

   3. Perform this procedure only when reusing the crankshaft position sensor.
      1. Remove the O-ring from the crankshaft position sensor.
      NOTE:

      • Make sure to only remove the O-ring with bare hands.
      • When removing the O-ring, be careful not to damage the O-ring groove of the crankshaft position sensor.
      • If the O-ring groove of the crank position sensor is damaged, replace the crank position sensor with a new one.
