Removal [12/2023 - ]: Procedure
- REMOVE FRONT DOOR SCUFF PLATE LH
Refer to PRECAUTION [12/2023 - ]
- REMOVE COWL SIDE TRIM BOARD LH
Refer to PRECAUTION [12/2023 - ]
- REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
- w/o Footwell Light
Refer to REMOVAL [12/2023 - 03/2024] , or refer to REMOVAL [03/2024 - ]
- w/ Footwell Light
Refer to REMOVAL [12/2023 - ]
- w/o Footwell Light

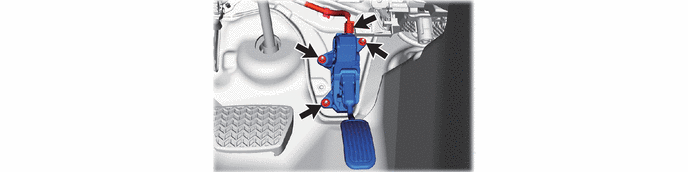

- REMOVE ACCELERATOR PEDAL (WITH SENSOR) ROD ASSEMBLY NOTE:
- Avoid physical shock to the accelerator pedal (with sensor) rod assembly.
- If the accelerator pedal (with sensor) rod assembly has been struck or dropped, replace it.
- Do not disassemble the accelerator pedal (with sensor) rod assembly.
- The accelerator pedal (with sensor) rod assembly does not require lubrication.
- Do not apply oil or other lubricants to the accelerator pedal (with sensor) rod assembly. If applied, the accelerator pedal (with sensor) rod assembly must be replaced.
