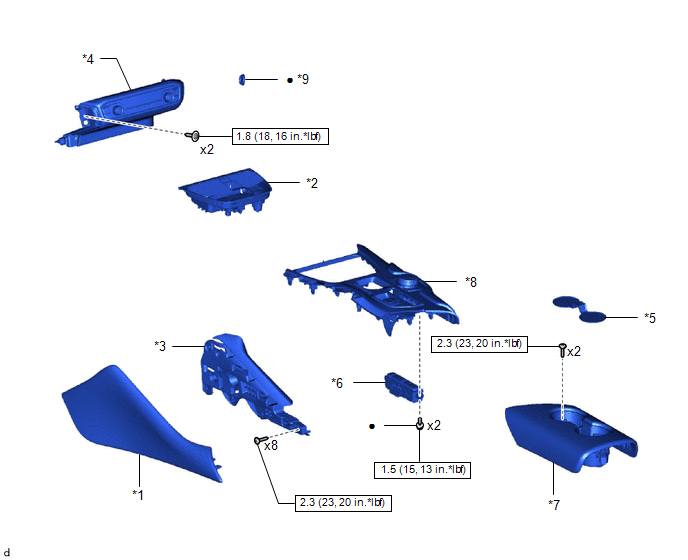

Components [03/2019 - ]
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | CONSOLE SIDE PANEL | *2 | FRONT CONSOLE BOX COVER |
| *3 | CONSOLE PANEL AND CONSOLE PANEL RETAINER | *4 | INSTRUMENT PANEL FINISH LOWER PANEL |
| *5 | NO. 1 CONSOLE BOX SILENCER PAD | *6 | VSC OFF SWITCH (PATTERN SELECT SWITCH ASSEMBLY) |
| *7 | REAR CONSOLE ARMREST ASSEMBLY | *8 | UPPER CONSOLE PANEL SUB-ASSEMBLY |
| *9 | RUBBER PLUG | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part |
