Removal [09/2022 - ]: Procedure

  1. PRECAUTION
    NOTE:

    After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal.

    Refer to BEFORE DISCONNECTING BATTERY [09/2022 - ]
  2. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

    Refer to REMOVAL [09/2022 - ]

  3. REMOVE REAR BUMPER ASSEMBLY

    Refer to REMOVAL [09/2022 - ]

  4. REMOVE NO. 1 LUGGAGE COMPARTMENT SIDE COVER PROTECTOR
    1. Use the same procedure described for the No. 2 luggage compartment side cover protector.

      Refer to PROCEDURE - Step 19

  5. REMOVE REAR BUMPER SIDE SEAL RH
    1. Use the same procedure described for the LH side.

      Refer to PROCEDURE - Step 23

  6. REMOVE REAR WHEEL

    Refer to REMOVAL [09/2022 - ]

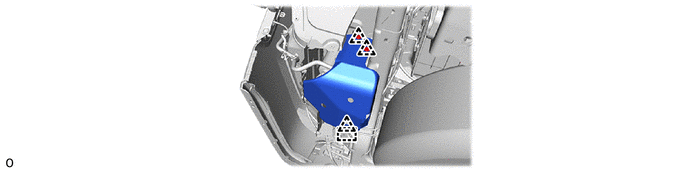

  7. REMOVE HEIGHT CONTROL COMPRESSOR COVER
    1. GTY1099481Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

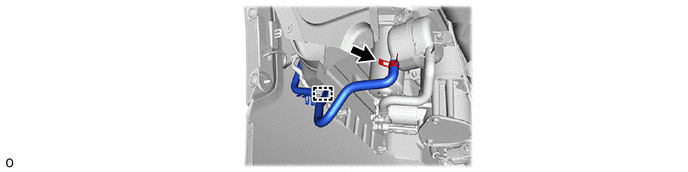

  8. DISCONNECT HEIGHT CONTROL HOSE ASSEMBLY
    1. GTY1099482Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE HEIGHT CONTROL COMPRESSOR WITH BRACKET
    1. GTY1100559Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disconnect the No. 2 height control tube.

        Refer to PRECAUTION [09/2022 - ]

        HINT:

        For the disconnection procedure of the tube (type 2), refer to Precaution of the Suspension Control System section.

    2. GTY1101974Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disconnect the 2 connectors.
      2. Detach the clamp.

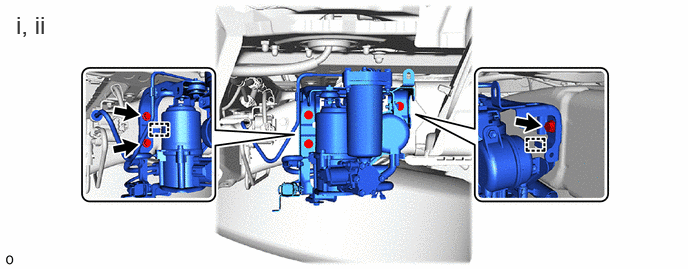

    3. GTY1101968Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the 3 bolts.
      2. Detach the 2 hooks and remove the height control compressor with bracket.
  10. REMOVE NO. 1 HEIGHT CONTROL HOSE
    1. GTY1037833Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE HEIGHT CONTROL FILTER
    1. GTY1037835Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE NO. 2 HEIGHT CONTROL TUBE
    1. GTY1037881Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Detach the clamp.
      2. Remove the No. 2 height control tube.

        Refer to PRECAUTION [09/2022 - ]

        HINT:

        For the disconnection procedure of the tube (type 2), refer to Precaution of the Suspension Control System section.

  13. REMOVE NO. 1 HEIGHT CONTROL TUBE CLAMP
    1. GTY1037840Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE HEIGHT CONTROL COMPRESSOR ASSEMBLY
    1. GTY1036894Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. REMOVE NO. 1 HEIGHT CONTROL COMPRESSOR BUSHING
    1. GTY1036886Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE HEIGHT CONTROL DRYER ASSEMBLY
    1. GTY1036884Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
