Installation [09/2022 - ]: Procedure
- INSTALL NO. 2 HEIGHT CONTROL VALVE SUB-ASSEMBLY
Torque: 29 N.m (296 kgf/cm, 21 ft.lbf)
- CONNECT NO. 6 HEIGHT CONTROL TUBE

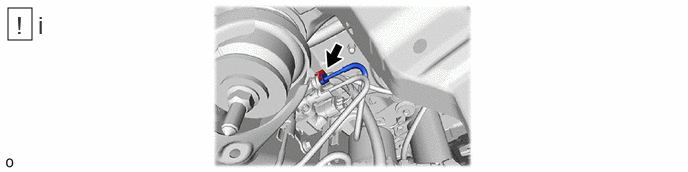

- Connect the No. 6 height control tube.
Refer to PRECAUTION [09/2022 - ]
HINT:
For the connection procedure of the tube (type 1), refer to Precaution of the Suspension Control System section.
- Connect the No. 6 height control tube.
- CONNECT NO. 7 HEIGHT CONTROL TUBE

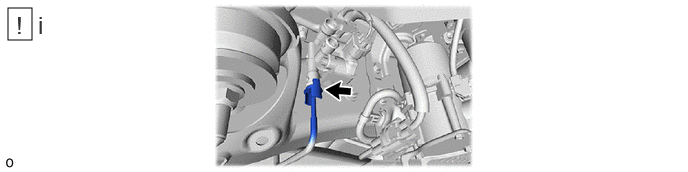

- Connect the No. 7 height control tube.
Refer to PRECAUTION [09/2022 - ]
HINT:
For the connection procedure of the tube (type 1), refer to Precaution of the Suspension Control System section.
- Connect the No. 7 height control tube.
- CONNECT NO. 2 HEIGHT CONTROL TUBE

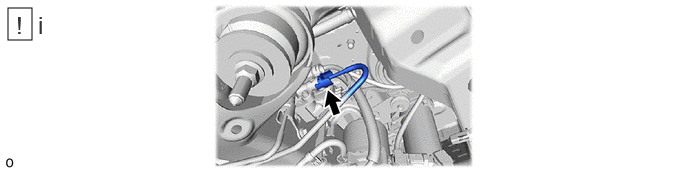

- Connect the No. 2 height control tube.
Refer to PRECAUTION [09/2022 - ]
HINT:
For the connection procedure of the tube (type 2), refer to Precaution of the Suspension Control System section.
- Connect the No. 2 height control tube.
- INSTALL NO. 1 LUGGAGE COMPARTMENT SIDE COVER PROTECTOR
- INSTALL REAR BUMPER ASSEMBLY
Refer to INSTALLATION [09/2022 - ]
- CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL
Refer to INSTALLATION [09/2022 - ]
- CHECK CONNECTIONS OF TUBES FOR AIR LEAKAGE
Refer to ADJUSTMENT [09/2022 - ]
- INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL
HINT:
When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system is used.
