Components [06/2020 - ]

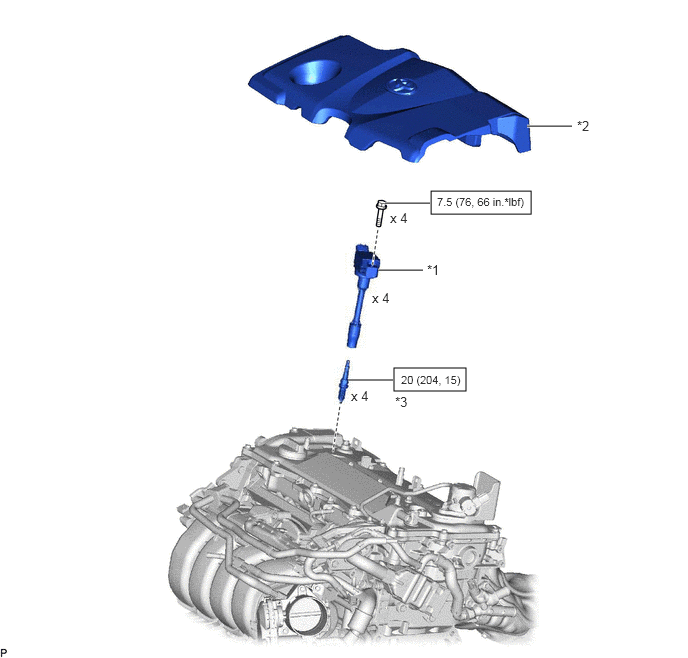

Fig 1: Ignition Coil And Spark Plug Replacement Components With Torque Specifications
GTY898328Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 IGNITION COIL ASSEMBLY *2 NO. 1 ENGINE COVER SUB-ASSEMBLY
*3 SPARK PLUG - -
N.m (kgf/cm, ft.lbf): Specified torque - -
