Removal [03/2023 - ]: Procedure
- REMOVE ENGINE ASSEMBLY WITH TRANSAXLE
- for HEV Model:
Refer to REMOVAL [12/2022 - ]
- for PHEV Model:
Refer to REMOVAL [03/2023 - ]
- for HEV Model:

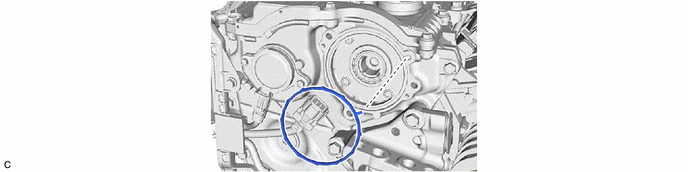

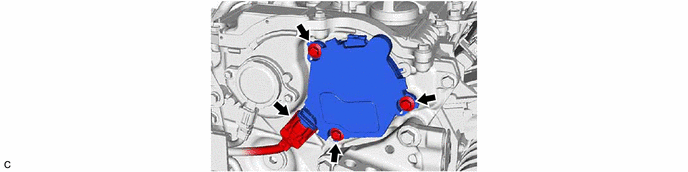

- REMOVE CAM TIMING CONTROL MOTOR WITH EDU ASSEMBLY NOTE:
If the cam timing control motor with EDU assembly has been struck or dropped, replace it.
- REMOVE CAM TIMING CONTROL MOTOR O-RING
