Installation [02/2024 - ]: Procedure

INSTALL FRONT SPEED SENSOR

NOTE:

Keep the tip of the front speed sensor and installation hole free of foreign matter.
Firmly insert the front speed sensor body into the steering knuckle before tightening the bolt.
After installing the front speed sensor to the steering knuckle, make sure that there is no clearance between the front speed sensor stay and steering knuckle. Also make sure that no foreign matter is stuck between the parts.
Do not twist the front speed sensor wire harness when installing it.

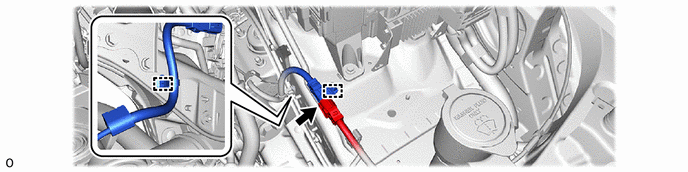

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

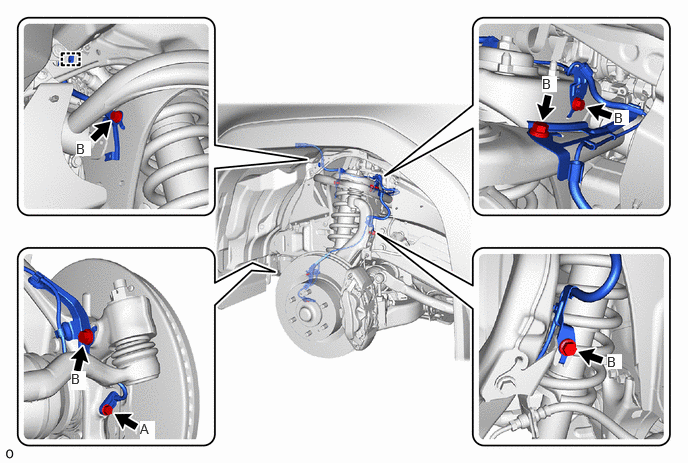

Bolt A

Torque: 8.5 N.m (87 kgf/cm, 75 in.lbf)

Bolt B

Torque: 12.5 N.m (127 kgf/cm, 9 ft.lbf)

INSTALL AIR CLEANER CASE SUB-ASSEMBLY (for RH Side)
INSTALL AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY (for RH Side)
INSTALL AIR CLEANER CAP WITH NO. 1 AIR CLEANER HOSE (for RH Side)

Refer to PROCEDURE - Step 19
INSTALL FRONT WHEEL
Refer to INSTALLATION [02/2024 - ]
CHECK FOR SPEED SENSOR SIGNAL
Refer to SIGNAL CHECK [02/2024 - ]
