Crankshaft Position Sensor
>>
Components [10/2022 - ]
Components [10/2022 - ]

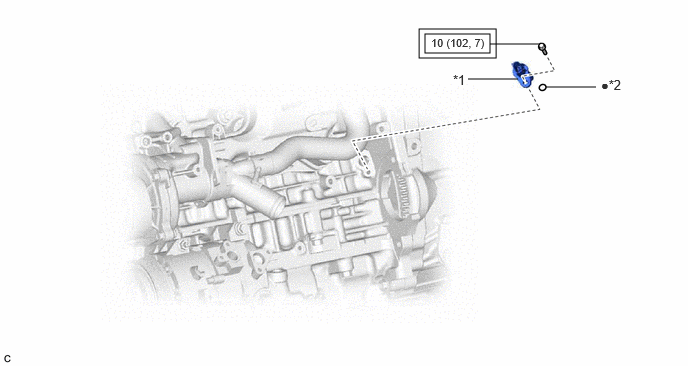

Fig 1: Crankshaft Position Sensor Replacement Components With Torque Specifications [10/2022 - ]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout
Description
Callout
Description
*1
CRANKSHAFT POSITION SENSOR
*2
O-RING
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)
•
Non-reusable part
