Components [10/2022 - ]

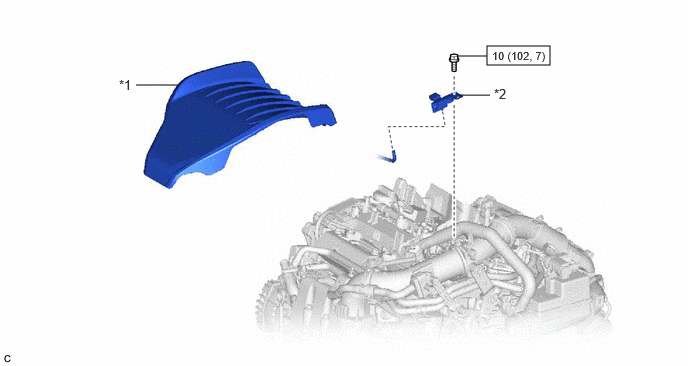

Fig 1: Vacuum Sensor Replacement Components With Torque Specifications [10/2022 - ]
GTY1105455Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 NO. 1 ENGINE COVER SUB-ASSEMBLY *2 VACUUM SENSOR ASSEMBLY
N.m (kgf/cm, ft.lbf): Specified torque - -
