Components [10/2022 - ]

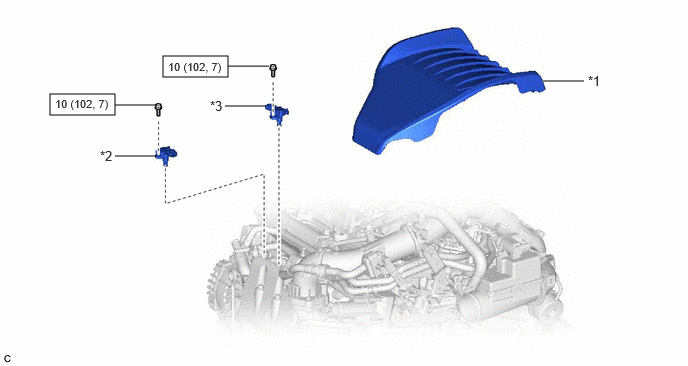

Fig 1: Manifold Absolute Pressure Sensor Replacement Components With Torque Specifications [10/2022 - ]
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | NO. 1 ENGINE COVER SUB-ASSEMBLY | *2 | NO. 1 TURBO PRESSURE SENSOR |
| *3 | NO. 2 TURBO PRESSURE SENSOR | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |
