Installation [09/2014 - 11/2017]: Procedure

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2024 Lexus RC 350, 2024 Lexus RC 300, 2023 Lexus RC 350, 2023 Lexus RC 300, and 2022 Lexus RC 350. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL LANE DEPARTURE WARNING CAMERA

When using a new lane departure warning camera:

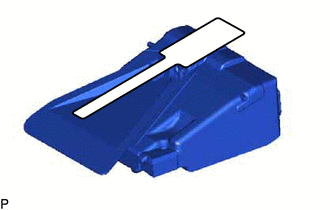

Remove the protective film.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE:

Do not touch the camera lens after removing the protective film.

Connect the connector.

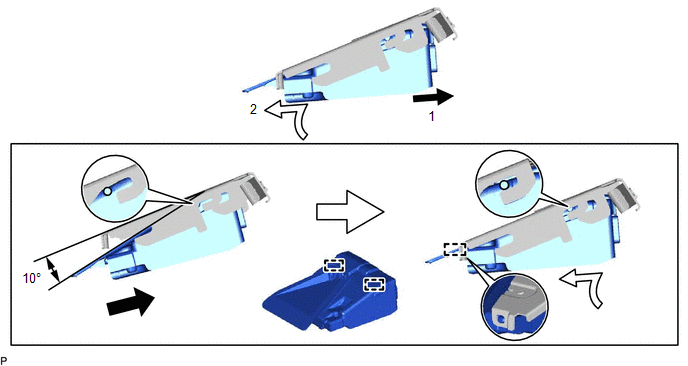

Engage the 2 guides as shown in the illustration.

NOTE:

Do not touch the camera lens.

Engage the guide to install the lane departure warning camera as shown in the illustration.

INSTALL NO. 1 LANE RECOGNITION COVER
Refer to PROCEDURE - Step 4
ADJUST LANE DEPARTURE WARNING CAMERA
Refer to ADJUSTMENT [09/2014 - 11/2017]
