Caution / Notice / Hint

NOTE:

This procedure includes the removal of small-head bolts. Refer to Small-Head Bolts of Basic Repair Hint to identify the small-head bolts.

Refer to PRECAUTION [09/2022 - ]



COMPONENTS (REMOVAL)

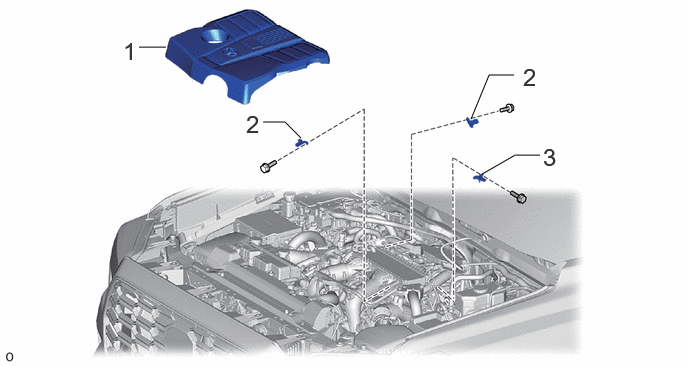

Fig 1: Vacuum Sensor Removal Components
GTY1097353Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Procedure Part Name Code
1 V-BANK COVER SUB-ASSEMBLY 11209 - - -
2 E.F.I. VACUUM SENSOR ASSEMBLY 89421 - - -
3 VACUUM SENSOR ASSEMBLY 89420 - - -
