Caution / Notice / Hint

NOTE:

This procedure includes the removal of small-head bolts. Refer to Small-Head Bolts of Basic Repair Hint to identify the small-head bolts.

Refer to PRECAUTION [12/2022 - 03/2023] , or refer to PRECAUTION [03/2023 - ]



COMPONENTS (REMOVAL)

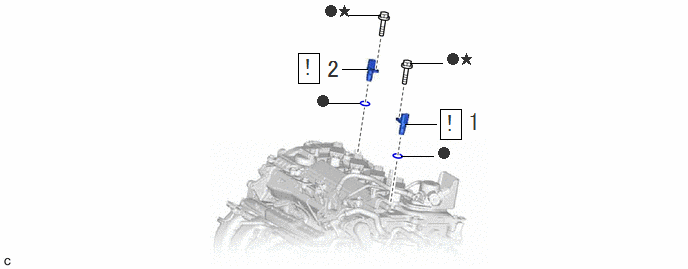

Fig 1: Camshaft Position Sensor Removal Components
GTY1140182Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout - Procedure Part Name Code
1 CAMSHAFT POSITION SENSOR (for Intake Side) 11102A See step  1 - -
2 CAMSHAFT POSITION SENSOR (for Exhaust Side) 11102A See step  2 - -
• Non-reusable part * Precoated part
