Installation [03/2023 - ]: Procedure
- INSTALL SOLAR ENERGY CONTROL ECU ASSEMBLY
-
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

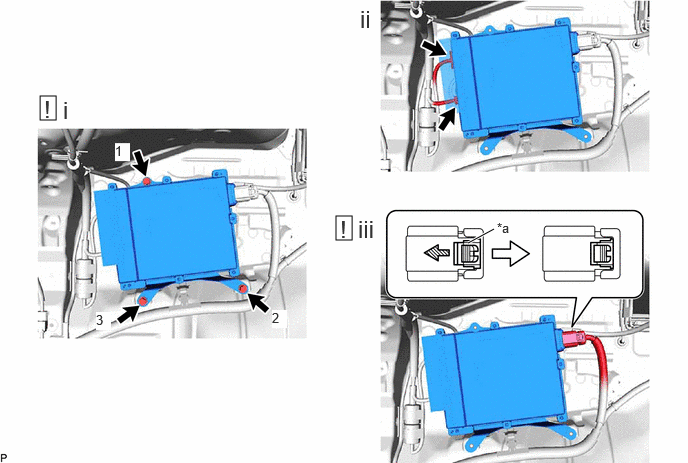

*a Green-colored Lock - - Slide - - - Install the solar energy control ECU assembly with the 3 bolts.
Torque: 14 N.m (143 kgf/cm, 10 ft.lbf)
HINT:
Tighten the bolts in the order shown in the illustration.
- Connect the 2 connectors.
- Remove the insulating tape from the connector, and connect the connector and slide the green-colored lock as shown in the illustration to securely lock it.WARNING:
Make sure to wear insulated gloves.
NOTE:- Make sure that the connector is connected securely.
- Check that the waterproof sheet is properly set.
- Install the solar energy control ECU assembly with the 3 bolts.
-
- INSTALL DECK TRIM SIDE PANEL ASSEMBLY RH
- INSTALL NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY
- INSTALL LUGGAGE HOLD BELT STRIKER ASSEMBLY (for RH Side)
- INSTALL REAR SEAT SIDE GARNISH RH
HINT:
Use the same procedure as for the LH side.
Refer to PROCEDURE - Step 18 - INSTALL REAR SEAT BACK HINGE SUB-ASSEMBLY RH
Refer to PROCEDURE - Step 19
- CONNECT REAR DOOR OPENING TRIM WEATHERSTRIP RH
- INSTALL REAR DOOR SCUFF PLATE INSIDE RH
- INSTALL REAR DECK TRIM COVER
- INSTALL LUGGAGE HOLD BELT STRIKER ASSEMBLY (for Rear Side)
- INSTALL DECK FLOOR BOX LH
- INSTALL DECK FLOOR BOX RH
- INSTALL REAR SEAT CUSHION LOCK HOOK
- INSTALL REAR SEAT CUSHION ASSEMBLY
Refer to PROCEDURE - Step 2 - INSTALL REAR SEATBACK ASSEMBLY RH
Refer to PROCEDURE - Step 3 - CONNECT REAR CENTER SEAT OUTER BELT ASSEMBLY
- INSTALL REAR SEAT CENTER HEADREST ASSEMBLY (for RH Side)
- INSTALL REAR SEAT HEADREST ASSEMBLY (for RH Side)
- INSTALL BATTERY SERVICE HOLE COVER ASSEMBLY
- INSTALL DECK BOARD ASSEMBLY
- INSTALL TONNEAU COVER ASSEMBLY
- INSTALL SERVICE PLUG GRIP
Refer to INSTALLATION [12/2022 - ]
