Components [07/2017 - ]

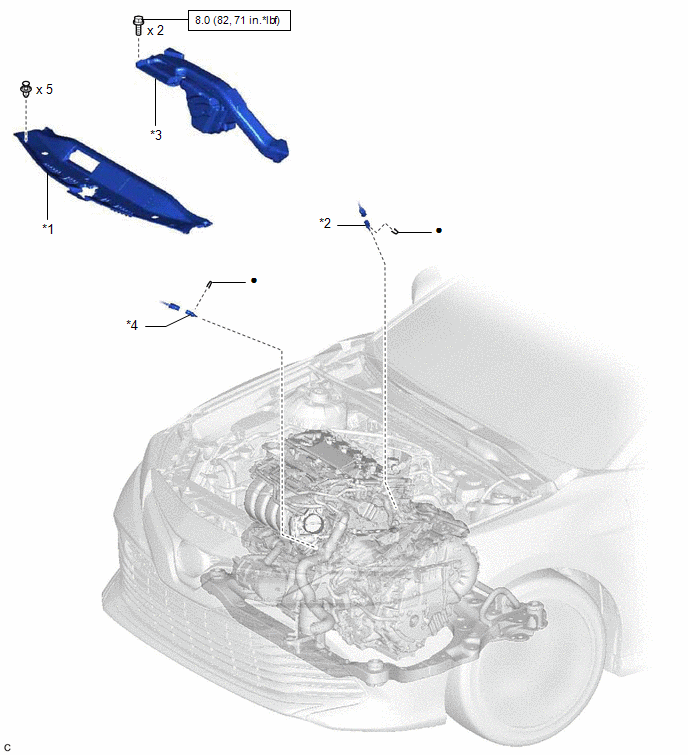

Fig 1: Engine Coolant Temperature Sensor Replacement Components With Torque Specifications
GTY747132Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 COOL AIR INTAKE DUCT SEAL *2 ENGINE COOLANT TEMPERATURE SENSOR
*3 INLET AIR CLEANER ASSEMBLY *4 NO. 2 ENGINE COOLANT TEMPERATURE SENSOR
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part
