Installation [07/2020 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.

INSTALL INTAKE AIR TEMPERATURE SENSOR

NOTE:

Contaminant or foreign body.
Contamination can result in malfunctions, operating failure or leaks.
- Adhere to the utmost cleanliness.
- Protect components from contamination e.g. by covering.
- Close off line connections with seal plugs.

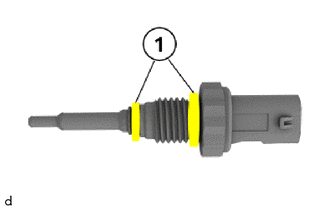

Replace the O-ring (1) on the intake air temperature sensor.

GTY946284

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Guide in the intake air temperature sensor.
Using a 17 mm deep socket wrench, tighten the intake air temperature sensor.
Torque: 2.25 N*m (23 kgf*cm, 20 in.*lbf)
Connect connectors and lock.

INSTALL NO. 1 ENGINE COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 40
