Installation [07/2020 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.

INSTALL OIL TEMPERATURE SENSOR

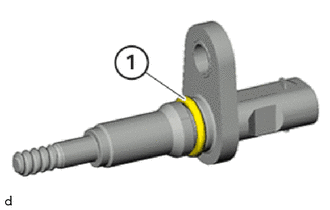

Replace O-ring (1).

GTY946306

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Install the oil temperature sensor on the cylinder block sub-assembly.
Tighten down T30 bolt.
Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)
Connect the connector.
HINT:

The connector must engage audibly.

INSTALL INTAKE MANIFOLD
Refer to INSTALLATION [07/2020 - ]
