Adjustment [04/2024 - ]: Procedure

  1. INSPECT TIRES

    Refer to INSPECTION [12/2022 - ]

  2. MEASURE VEHICLE HEIGHT
    NOTE:
    • Before inspecting the wheel alignment, adjust the vehicle height to the specified value.
    • Be sure to perform measurement on a level surface.
    • If it is necessary to go under the vehicle for measurement, confirm that the parking brake is applied and the vehicle is secured with chocks.
    • Inspect while the vehicle is unloaded.
    • The standard value shown here is a value that is used for performing a wheel alignment and does not indicate the height of an actual vehicle.
    1. Bounce the vehicle up and down at the corners to stabilize the suspension.
      GTY1145581Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

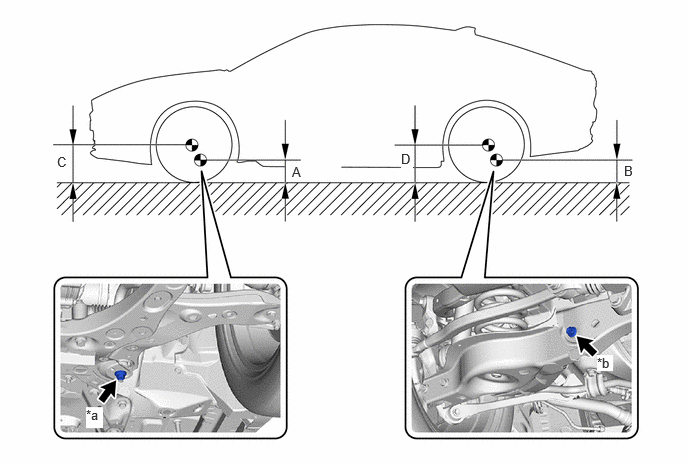

      *a Ground clearance of center of bolt head of front lower No. 2 suspension arm sub-assembly LH *b Ground clearance of center of tip of threaded portion of rear No. 2 suspension arm assembly LH
    2. Measure the vehicle height.

      Vehicle Height (Unloaded Vehicle)

      Item Front C - A Rear D - B
      for E-Four 150 mm (5.91 in.) 92 mm (3.62 in.)
      for E-Axle 145 mm (5.71 in.) 84 mm (3.31 in.)

      Measurement Points:

      1. A: Ground clearance of center of bolt head of front lower No. 2 suspension arm sub-assembly LH.
      2. B: Ground clearance of center of tip of threaded portion of rear No. 2 suspension arm assembly LH.
      3. C: Ground clearance of front wheel center
      4. D: Ground clearance of rear wheel center
  3. INSPECT CAMBER, CASTER AND STEERING AXIS INCLINATION
    NOTE:

    Inspect while the vehicle is unloaded.

    1. Install a camber-caster-kingpin gauge and place the front wheels on the center of a turning radius gauge.
      GTY447072Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Turning Radius Gauge
      *b Camber-caster-kingpin Gauge
    2. Inspect the camber, caster and steering axis inclination.

      Camber (Unloaded Vehicle)

      Item Specification Camber Inclination Right-left Difference
      for E-Four Tire Size: 225/55R19 -0°23' +/- 0°45' (-0.38° +/- 0.75°) 0°45' (0.75°) or less
      Tire Size: 225/45R21 -0°22' +/- 0°45' (-0.37° +/- 0.75°) 0°45' (0.75°) or less
      for E-Axle - -0°20' +/- 0°45' (-0.33° +/- 0.75°) 0°45' (0.75°) or less

      Caster (Unloaded Vehicle)

      Item Caster Inclination Right-left Difference
      for E-Four 5°09' +/- 0°45' (5.15° +/- 0.75°) 0°45' (0.75°) or less
      for E-Axle 5°03' +/- 0°45' (5.05° +/- 0.75°) 0°45' (0.75°) or less

      Steering Axis Inclination (Unloaded Vehicle)

      Item Steering Axis Inclination
      for E-Four 12°30' (12.50°)
      for E-Axle 12°24' (12.40°)
  4. ADJUST CAMBER
    NOTE:

    Inspect toe-in after the camber has been adjusted.

    1. Remove the front wheel.

      Refer to REMOVAL [12/2022 - ]

    2. Remove the 2 nuts on the lower side of the front shock absorber assembly.
      NOTE:

      Keep the bolts inserted.

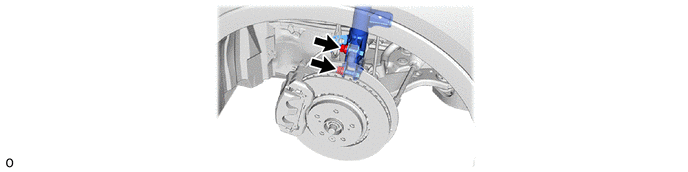

      GTY1150833Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the top and bottom bolts one at a time and confirm that the steering knuckle can move freely in the front shock absorber assembly.

      HINT:

      • Reinstall each bolt after removing it and confirming steering knuckle movement.
      • If the steering knuckle does not move freely in the front shock absorber assembly, clean the contact surfaces of the front shock absorber assembly and the steering knuckle.
    4. Temporarily install the 2 nuts. (Step A)
    5. Fully push or pull the front axle hub in the direction of the required adjustment. (Step B)

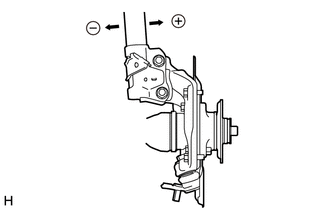

      GTY1063646Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Tighten the 2 nuts.

      Torque: 290 N.m (2957 kgf/cm, 214 ft.lbf)

      NOTE:

      Keep the bolts from rotating when tightening the nuts.

      GTY1150833Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Install the front wheel.

      Refer to INSTALLATION [12/2022 - ]

    8. Bounce the vehicle up and down at the corners to stabilize the suspension.
    9. Check the camber.

      Camber (Unloaded Vehicle)

      Item Specification Front C - A Right-left Difference
      for E-Four Tire Size: 225/55R19 -0°23' +/- 0°45' (-0.38° +/- 0.75°) 0°45' (0.75°) or less
      Tire Size: 225/45R21 -0°22' +/- 0°45' (-0.37° +/- 0.75°) 0°45' (0.75°) or less
      for E-Axle - -0°20' +/- 0°45' (-0.33° +/- 0.75°) 0°45' (0.75°) or less
      1. If the measured value is not within the specification, calculate the required adjustment amount using the formula below.

        Camber adjustment amount = center of the specified range - measured value

        Check the combination of the installed bolts. Select appropriate bolts from the tables below to adjust the camber to the specified values.

        To move the axle hub toward (+) in step B To move the axle hub toward (-) in step B
        Refer to table (1) (To move the axle hub toward the positive side) Refer to table (2) (To move the axle hub toward the negative side)

        The vehicle body and suspension may be damaged if the camber cannot be correctly adjusted according to the table above.

        NOTE:

        Replace the nut with a new one when replacing the bolt.

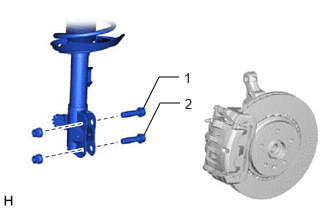

        GTY1064389Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Table (1) (To move the axle hub toward the positive side)
        GTY442787Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *A Table (1) (To move the axle hub toward the positive side) *B Selected Bolt Combination
        *a Installed Bolt *b Adjusting Value
        *c Standard Bolt *d 90105-17013
        *e 90105-17014 *f 90105-17015
      3. Table (2) (To move the axle hub toward the negative side)
        GTY437937Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *A Table (2) (To move the axle hub toward the negative side) *B Selected Bolt Combination
        *a Installed Bolt *b Adjusting Value
        *c Standard Bolt *d 90105-17013
        *e 90105-17014 *f 90105-17015
    10. If the camber was out of adjustment in the previous step, perform the adjust camber steps mentioned above. In step A, replace the existing bolts with the selected bolts.

      HINT:

      Replace one bolt at a time when replacing both bolts.

  5. INSPECT TOE-IN
    NOTE:

    Inspect while the vehicle is unloaded.

    1. Bounce the vehicle up and down at the corners to stabilize the suspension.
    2. Release the parking brake and move the shift lever to N.
    3. Push the vehicle straight ahead approximately 5 m (16.4 ft.). (Step C)
    4. Put tread center marks on the rearmost points of the front wheels and measure the distance between the marks (dimension B).
      GTY425631Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Tread Center Mark
      *b Dimension B
      Front of the Vehicle
    5. Slowly push the vehicle straight ahead to cause the front wheels to rotate 180°. Use the front tire valve as a reference point.

      HINT:

      Do not allow the wheels to rotate more than 180°. If the wheels rotate more than 180°, perform the procedure from step C again.

    6. Measure the distance between the tread center marks on the front of the wheels (dimension A).

      Toe-in (Unloaded Vehicle)

      Item Specified Condition
      for E-Four C + D: 0°12' +/- 0°10' (0.21° +/- 0.17°)
      B - A: 2.4 +/- 2.0 mm (0.09 +/- 0.08 in.)
      for E-Axle C + D: 0°15' +/- 0°10' (0.25° +/- 0.17°)
      B - A: 2.9 +/- 2.0 mm (0.11 +/- 0.08 in.)
      GTY427700Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Dimension A
      Front of the Vehicle

      HINT:

      Measure "B - A" only when "C + D" cannot be measured.

      If the toe-in is not within the specified range, adjust it at the steering rack ends.

  6. ADJUST TOE-IN
    1. Separate the steering rack boot clips from the steering rack boot.
    2. Loosen the tie rod assembly lock nuts.

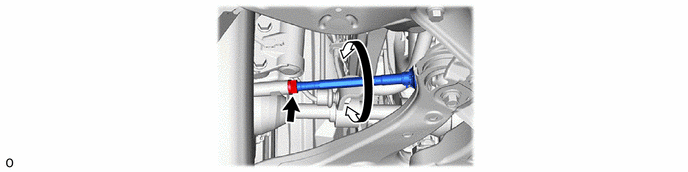

      GTY1150832Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Turn the right and left steering rack ends by an equal amount to adjust the toe-in.
    4. Measure the toe-in.
      GTY483976Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Front of the Vehicle

      Toe-in (Unloaded Vehicle)

      Item Specified Condition
      for E-Four C + D: 0°12' +/- 0°10' (0.21° +/- 0.17°)
      B - A: 2.4 +/- 2.0 mm (0.09 +/- 0.08 in.)
      for E-Axle C + D: 0°15' +/- 0°10' (0.25° +/- 0.17°)
      B - A: 2.9 +/- 2.0 mm (0.11 +/- 0.08 in.)
    5. Tighten the tie rod assembly lock nuts.

      Refer to PROCEDURE - Step 14

    6. Place the steering rack boot on the seat and install the steering rack boot clip.
      1. for LH side:

        Refer to PROCEDURE - Step 5

      2. for RH side:

        HINT:

        Perform the same procedure as for the LH side.

  7. INSPECT WHEEL ANGLE
    1. Put tread center marks on the rearmost points of a turning radius gauge.
      GTY425420Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Inside
      *b Outside
      Front of the Vehicle
    2. Turn the steering wheel fully to the left and right and measure the turning angle.

      Wheel Turning Angle (Unloaded Vehicle)

      Item Specification Inside Wheel Outside Wheel
      for E-Four Tire Size: 225/55R19 37°07' +/- 2°00' (37.12° +/- 2.00°) 31°40' (31.67°)
      Tire Size: 225/45R21 37°05' +/- 2°00' (37.08° +/- 2.00°) 31°40' (31.67°)
      for E-Axle - 37°11' +/- 2°00' (37.18° +/- 2.00°) 31°45' (31.75°)
      NOTE:

      Inspect while the vehicle is unloaded.

      If the right and left inside wheel angles differ from the specified value, check and adjust the right and left steering rack end lengths.

  8. ALIGN FRONT WHEELS FACING STRAIGHT AHEAD
  9. PERFORM CALIBRATION

    Refer to RESET MEMORY / CALIBRATION [12/2022 - ]
