Removal [08/2024 - ]: Procedure

PRECAUTION

NOTE:

After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal.

DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL
- for HEV Model:
  Refer to REMOVAL [08/2024 - ]
- for Gasoline Model:
  Refer to REMOVAL [08/2024 - ]
REMOVE REAR WHEEL (for RH Side)
Refer to REMOVAL [11/2021 - ]
REMOVE DIFFERENTIAL TORSIONAL DAMPER RH (for RH Side)
Refer to PROCEDURE - Step 2
REMOVE REAR HEIGHT CONTROL SENSOR SUB-ASSEMBLY RH
Refer to PROCEDURE - Step 3

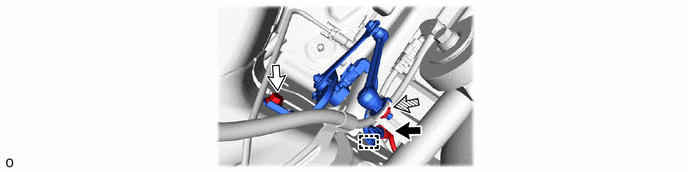

REMOVE REAR HEIGHT CONTROL SENSOR SUB-ASSEMBLY LH

	Connector		Bolt
	Nut	-	-
