Removal [08/2024 - ]: Procedure

  1. PRECAUTION
    NOTE:

    After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal.

    Refer to BEFORE DISCONNECTING BATTERY [11/2021 - ]
  2. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL
  3. REMOVE REAR WHEEL

    Refer to REMOVAL [11/2021 - ]

  4. REMOVE HEIGHT CONTROL COMPRESSOR COVER

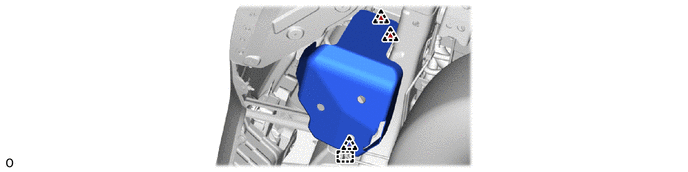

    1. GTY1037814Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. DISCONNECT HEIGHT CONTROL HOSE ASSEMBLY

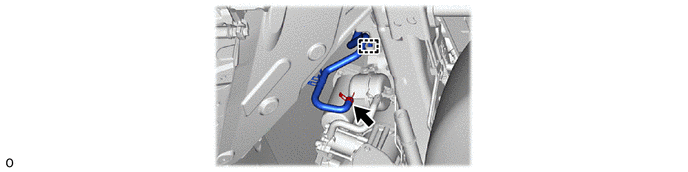

    1. GTY1037816Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE HEIGHT CONTROL COMPRESSOR WITH BRACKET
    1. GTY1037152Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disconnect the No. 2 height control tube.

        Refer to PRECAUTION [11/2021 - ]

        HINT:

        For the disconnection procedure of the tube (type 2), refer to Precaution of the Suspension Control System section.

    2. GTY1036873Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disconnect the 2 connectors.
      2. Detach the clamp.

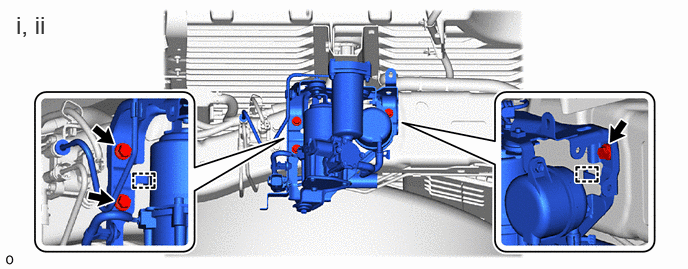

    3. GTY1036877Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the 3 bolts.
      2. Detach the 2 hooks and remove the height control compressor with bracket.
  7. REMOVE NO. 1 HEIGHT CONTROL HOSE

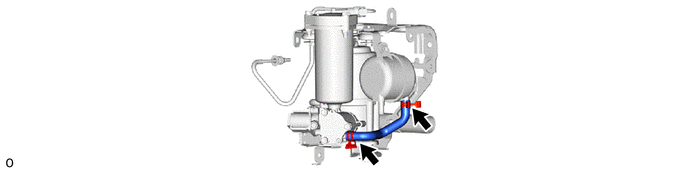

    1. GTY1037833Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE HEIGHT CONTROL FILTER

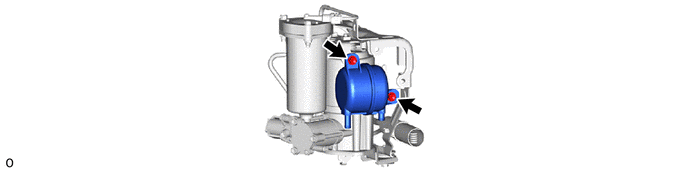

    1. GTY1037835Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE NO. 2 HEIGHT CONTROL TUBE
    1. GTY1037881Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Detach the clamp.
      2. Remove the No. 2 height control tube.

        Refer to PRECAUTION [11/2021 - ]

        HINT:

        For the disconnection procedure of the tube (type 2), refer to Precaution of the Suspension Control System section.

  10. REMOVE NO. 1 HEIGHT CONTROL TUBE CLAMP

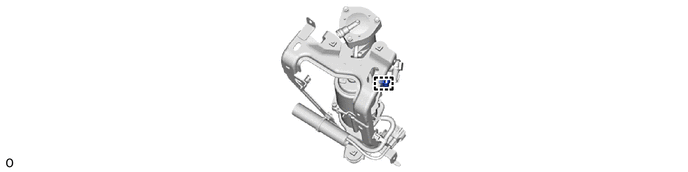

    1. GTY1037840Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE HEIGHT CONTROL COMPRESSOR ASSEMBLY

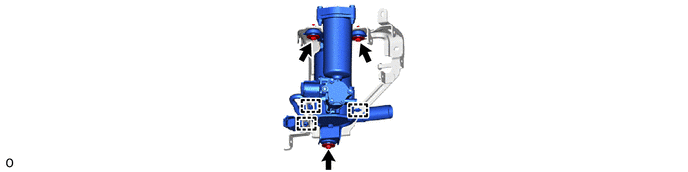

    1. GTY1036894Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE NO. 1 HEIGHT CONTROL COMPRESSOR BUSHING

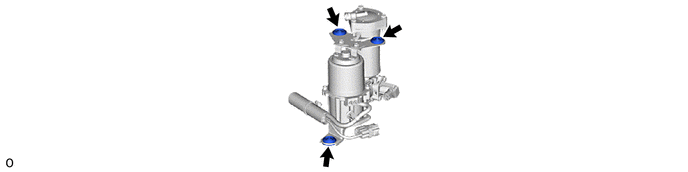

    1. GTY1036886Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. REMOVE HEIGHT CONTROL DRYER ASSEMBLY

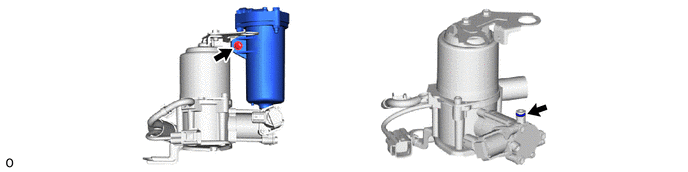

    1. GTY1036884Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
