Installation [05/2022 - ]: Procedure

Torque: 29 N.m (296 kgf/cm, 21 ft.lbf)

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

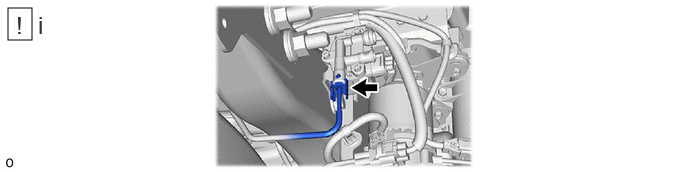

   1. Connect the No. 6 height control tube.

      Refer to PRECAUTION [11/2021 - ]

      HINT:

      For the connection procedure of the tube (type 1), refer to Precaution of the Suspension Control System section.

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

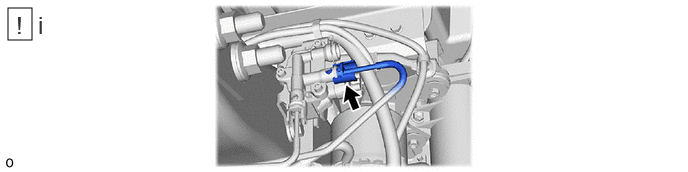

   1. Connect the No. 7 height control tube.

      Refer to PRECAUTION [11/2021 - ]

      HINT:

      For the connection procedure of the tube (type 1), refer to Precaution of the Suspension Control System section.

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

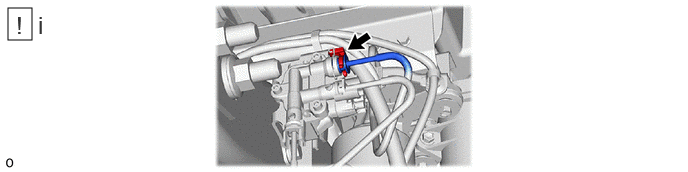

   1. Connect the No. 2 height control tube.

      Refer to PRECAUTION [11/2021 - ]

      HINT:

      For the connection procedure of the tube (type 2), refer to Precaution of the Suspension Control System section.

• for HEV Model:

  Refer to INSTALLATION [05/2022 - ]

• for Gasoline Model:

  Refer to INSTALLATION [11/2021 - ]

Refer to ADJUSTMENT [11/2021 - ]

HINT:

When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system is used.

Refer to AUTOMATIC LEARNING CHART [05/2022 - 08/2024] , or refer to AUTOMATIC LEARNING CHART [08/2024 - ]
