Removal [04/2018 -]: Procedure

WARNING: This page is about a different car, the 2022 Toyota Avalon, 2021 Toyota Avalon, 2020 Toyota Avalon, and 2019 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE FRONT DOOR SCUFF PLATE LH
Refer to PROCEDURE - Step 3 [04/2018 - 08/2020] , or refer to PROCEDURE - Step 3 [08/2020 - 08/2021] , or refer to PROCEDURE - Step 3 [08/2021 -]
REMOVE COWL SIDE TRIM SUB-ASSEMBLY LH
Refer to PROCEDURE - Step 4 [04/2018 - 08/2020] , or refer to PROCEDURE - Step 4 [08/2020 - 08/2021] , or refer to PROCEDURE - Step 4 [08/2021 -]
REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 8 [04/2018 - 08/2021] , or refer to PROCEDURE - Step 8 [08/2021 -]
DISCONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP LH
Refer to PROCEDURE - Step 6 [04/2018 - 08/2021] , or refer to PROCEDURE - Step 6 [08/2021 -]
REMOVE INSTRUMENT SIDE PANEL LH
Refer to PROCEDURE - Step 7 [04/2018 - 08/2021] , or refer to PROCEDURE - Step 7 [08/2021 -]
DISCONNECT HOOD LOCK CONTROL LEVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 9 [04/2018 - 08/2021] , or refer to PROCEDURE - Step 9 [08/2021 -]
REMOVE NO. 1 INSTRUMENT PANEL SUB-ASSEMBLY
Refer to PROCEDURE - Step 10 [04/2018 - 08/2021] , or refer to PROCEDURE - Step 10 [08/2021 -]

REMOVE VSC OFF SWITCH

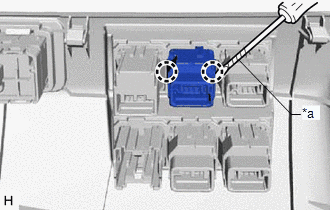

Using a screwdriver with its tip wrapped with protective tape, disengage the 2 claws to remove the VSC OFF switch from the No. 1 instrument panel sub-assembly.

*a	Protective Tape
