Engine Control System - Service Information
>>
Air Fuel Ratio Sensor
>>
Components [02/2017 - ]
Components [02/2017 - ]

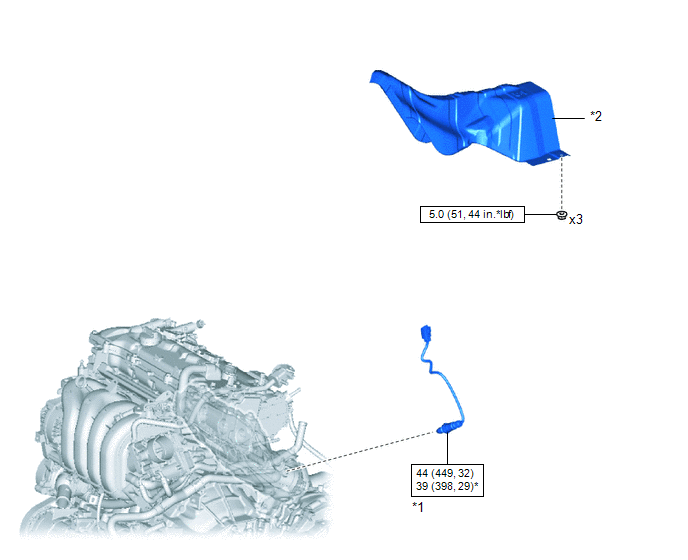

Fig 1: Air Fuel Ratio Sensor Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout
Description
Callout
Description
*1
AIR FUEL RATIO SENSOR
*2
NO. 1 FRONT FLOOR HEAT INSULATOR
N*m (kgf*cm, ft.*lbf): Specified torque
*
For use with SST
