Home >> Toyota >> 2022 >> 4Runner TRD Pro >> Repair and Diagnosis >> Engine Performance >> Fuel Delivery >> Fuel System - Service Information >> Fuel Tank >> Components [08/2015 - ]

Components [08/2015 - ]

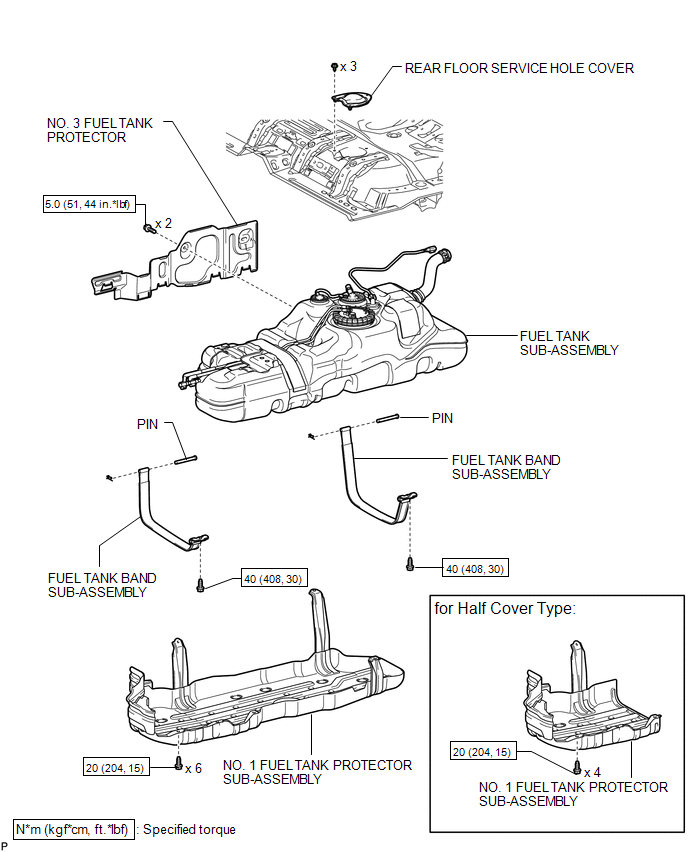

Fig 1: Fuel Tank Replacement Components With Torque Specifications (1 Of 2)
GTY714862Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Fuel Tank Replacement Components With Torque Specifications (2 Of 2)
GTY698025Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
