On-Vehicle Inspection [07/2020 - ]: Procedure

  1. REMOVE CAM TIMING OIL CONTROL SOLENOID ASSEMBLY

    Refer to REMOVAL [07/2020 - ]

  2. INSPECT CAMSHAFT TIMING VALVE ASSEMBLY
    1. Check the stroke of the plunger in the center of the camshaft timing valve assembly.

      Standard Stroke

      2.2 mm (0.0866 in.) or more

      If the result is not as specified, replace the camshaft timing valve assembly.

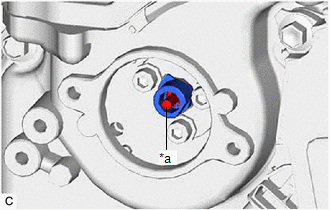

      GTY999542Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Plunger
  3. INSTALL CAM TIMING OIL CONTROL SOLENOID ASSEMBLY

    Refer to INSTALLATION [07/2020 - ]
