Components [07/2020 - ]

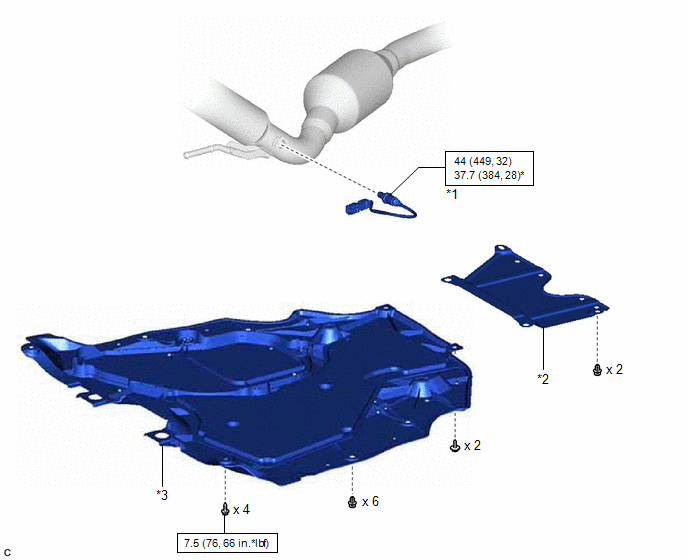

Fig 1: Air Fuel Ratio Sensor (For Sensor 2) Replacement Components With Torque Specification
GTY998996Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 AIR FUEL RATIO SENSOR *2 ENGINE UNDER COVER HEAT INSULATOR
*3 NO. 2 ENGINE UNDER COVER ASSEMBLY - -
N.m (kgf/cm, ft.lbf): Specified torque * For use with SST
