Installation [07/2020 - ]: Procedure

  1. INSTALL VSC OFF SWITCH

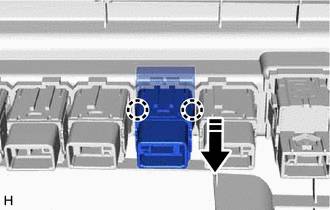

    1. Install the VSC OFF switch to the fuse box opening cover with the 2 claws as shown in the illustration.
      GTY976173Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  2. CONNECT HOOD LOCK CONTROL LEVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 20 [07/2020 - 10/2022] , or refer to PROCEDURE - Step 19 [10/2022 - ]

  3. INSTALL FUSE BOX OPENING COVER

    Refer to INSTALLATION [07/2020 - ]
