Components [07/2020 - ]

Fig 1: Steering Angle Sensor Replacement Components (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	BATTERY HOLE COVER	*2	REAR NO. 2 FLOOR BOARD

Fig 2: Steering Angle Sensor Replacement Components (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description

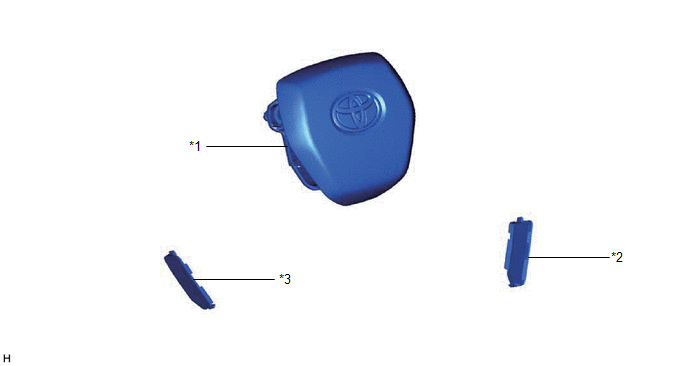

*1	HORN BUTTON ASSEMBLY	*2	LOWER NO. 2 STEERING WHEEL COVER
*3	LOWER NO. 3 STEERING WHEEL COVER	-	-

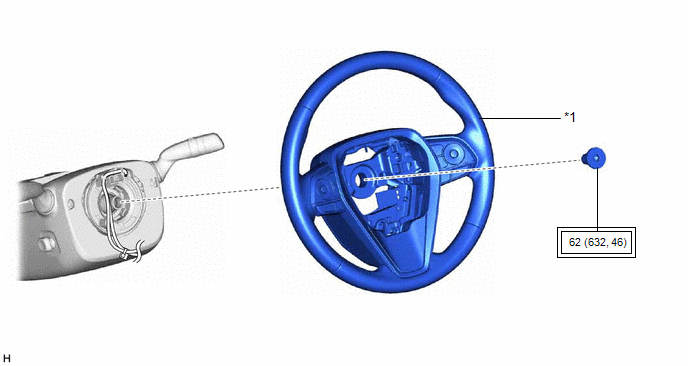

Fig 3: Steering Angle Sensor Replacement Components With Torque Specifications (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	STEERING WHEEL ASSEMBLY	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": Nm (kgfcm, ft.*lbf)	-	-

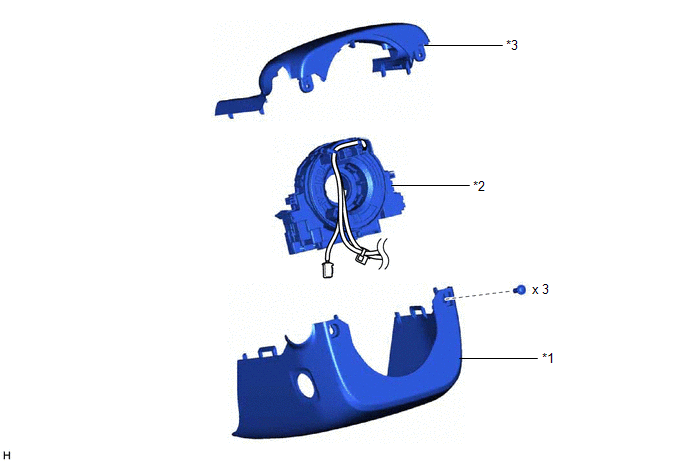

Fig 4: Steering Angle Sensor Replacement Components (4 Of 5)

Callout	Description	Callout	Description
*1	LOWER STEERING COLUMN COVER	*2	SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY
*3	UPPER STEERING COLUMN COVER	-	-

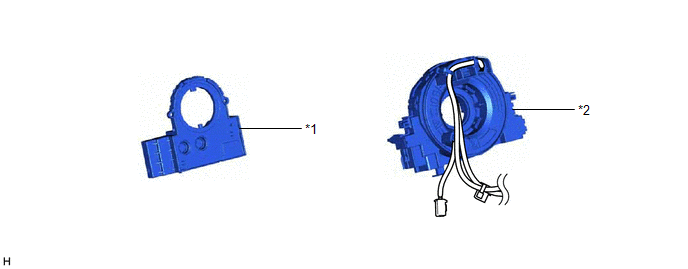

Fig 5: Steering Angle Sensor Replacement Components (5 Of 5)

Callout	Description	Callout	Description
*1	STEERING SENSOR	*2	SPIRAL CABLE SUB-ASSEMBLY
