Components [07/2020 - ]

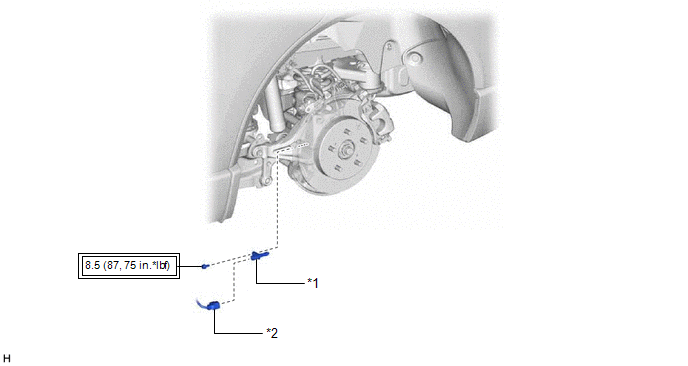

Fig 1: Rear Speed Sensor Replacement Components With Torque Specification
GTY977877Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 REAR SKID CONTROL SENSOR *2 PARKING BRAKE WIRE ASSEMBLY
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) - -
