Installation [07/2020 - ]: Procedure

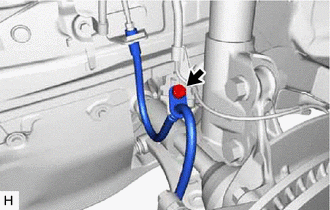

1. Install the front speed sensor to the steering knuckle with the bolt.

   Torque: 8.5 N*m (87 kgf*cm, 75 in.*lbf)

   NOTE:

   • Keep the tip of the front speed sensor and installation hole free of foreign matter.
   • Firmly insert the front speed sensor body into the steering knuckle before tightening the bolt.
   • After installing the front speed sensor to the steering knuckle, make sure that there is no clearance between the front speed sensor stay and steering knuckle. Also make sure that no foreign matter is stuck between the parts.
   • Do not twist the front speed sensor wire harness when installing it.
2. Engage the clamp to install the sensor clamp.
   NOTE:

   Do not twist the front speed sensor wire harness when installing it.

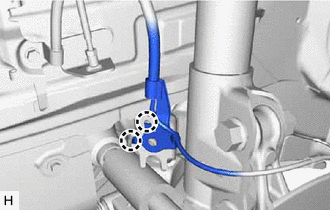

3. Engage the 2 claws to install the sensor clamp.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   Do not twist the front speed sensor wire harness when installing it.

4. Install the front flexible hose with the bolt.

   Torque: 29 N*m (296 kgf*cm, 21 ft.*lbf)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

5. Install the sensor clamp with the bolt.

   Torque: 8.5 N*m (87 kgf*cm, 75 in.*lbf)

   NOTE:

   Do not twist the front speed sensor wire harness when installing it.

6. Engage the clamp.
   NOTE:

   Do not twist the front speed sensor wire harness when installing it.

7. Connect the front speed sensor connector.

1. Engage the 2 claws.
2. Install a new grommet.
3. Install the front fender liner with the screw and 5 clips.

Refer to PROCEDURE - Step 65

Refer to INSTALLATION [07/2020 - ]

Refer to CAUTION / NOTICE / HINT

Refer to SIGNAL CHECK [07/2020 - ]
