Removal [08/2015 - ]: Procedure

  1. PRECAUTION
    NOTE:

    After turning the ignition switch off, waiting time may be required before disconnecting the cable from the battery terminal. Therefore, make sure to read the disconnecting the cable from the battery terminal notice before proceeding with work (Refer to PRECAUTION [08/2015 - 08/2017] , or refer to PRECAUTION [08/2017 - 08/2019] , or refer to PRECAUTION [08/2019 - ] ).

  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    WARNING:

    Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

  3. REMOVE REAR WHEEL
  4. REMOVE REAR SPEED SENSOR LH

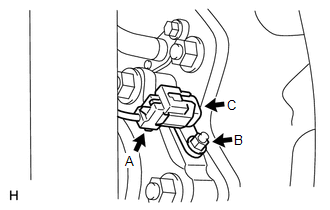

    1. Disconnect the speed sensor connector (labeled A).
      GTY584232Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the nut (labeled B) and speed sensor (labeled C).
  5. REMOVE REAR SPEED SENSOR RH

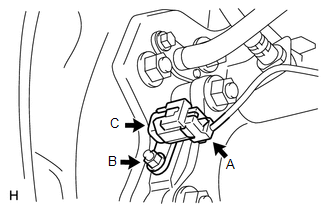

    1. Disconnect the speed sensor connector (labeled A).
      GTY202830Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the nut (labeled B) and speed sensor (labeled C).
  6. REMOVE SKID CONTROL SENSOR WIRE

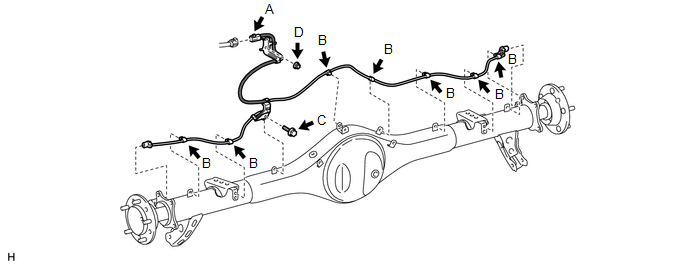

    1. Disconnect the sensor connector (labeled A).
    2. Detach the 7 clips (labeled B).
    3. Remove the bolt (labeled C).
    4. Remove the nut (labeled D) and skid control sensor wire.
      GTY202828Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
